Summary information and primary citation

PDB-id
1hap
Class
hydrolase-hydrolase inhibitor-DNA
Method
X-ray (2.8 Å)
Summary
Complex of human alpha-thrombin with a 15mer oligonucleotide ggttggtgtggttgg (based on x-ray model of DNA)
Reference
Padmanabhan K, Tulinsky A (1996): "An ambiguous structure of a DNA 15-mer thrombin complex." Acta Crystallogr.,Sect.D, 52, 272-282. doi: 10.1107/S0907444995013977.
Abstract
The structure of a complex between thrombin and a GGTTGGTGTGGTTGG DNA 15-mer has been analyzed crystallographically. The solution NMR structure of the 15-mer has two stacked G-quartets similar to that found in the previous X-ray structure determination of the 15-mer-thrombin complex [Padmanabhan, Padmanabhan, Ferrara, Sadler & Tulinsky (1993). J. Biol. Chem. 268, 17651-17654]; the strand polarity, however, is reversed from that of the crystallographic structure. The structure of the complex here has been redetermined with better diffraction data confirming the previous crystallographic structure but also indicating that the NMR solution structure fits equally well. Both 15-mer complex structures refined to an R value of about 0.16 presenting a disconcerting ambiguity. Since the two 15-mer structures associate with thrombin in different ways (through the TGT loop in the X-ray and TT loop in the NMR model), other independent lines of physical or chemical evidence are required to resolve the ambiguity.
G4 notes
2 G-tetrads, 1 G4 helix, 1 G4 stem, UDUD, anti-parallel:chair, 2+2, 2(-Lw-Ln-Lw)

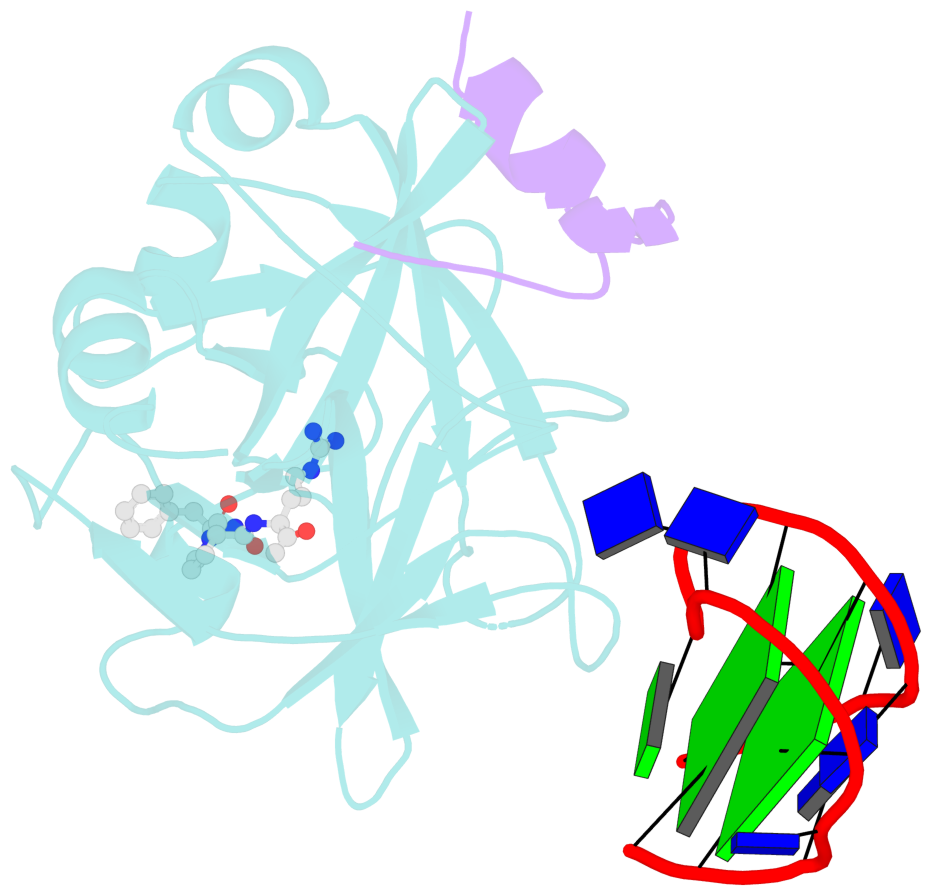

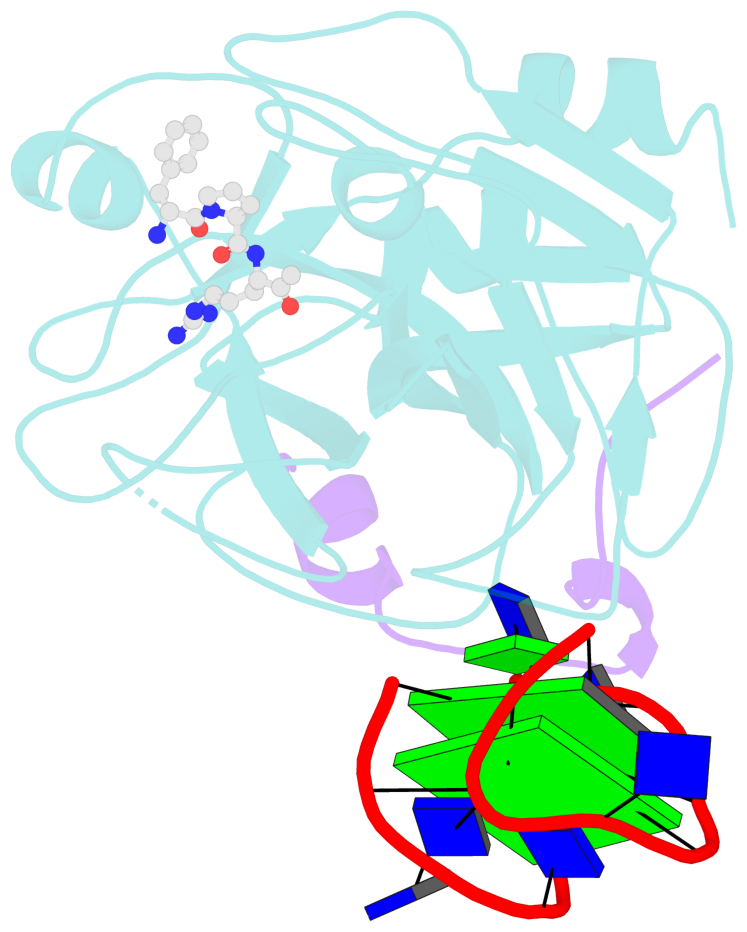

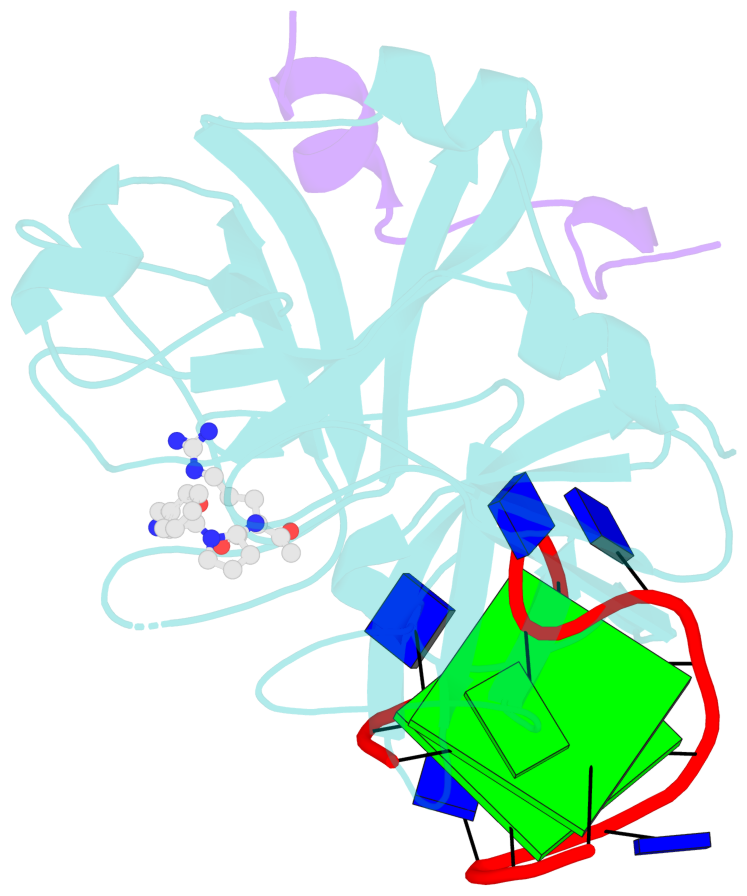

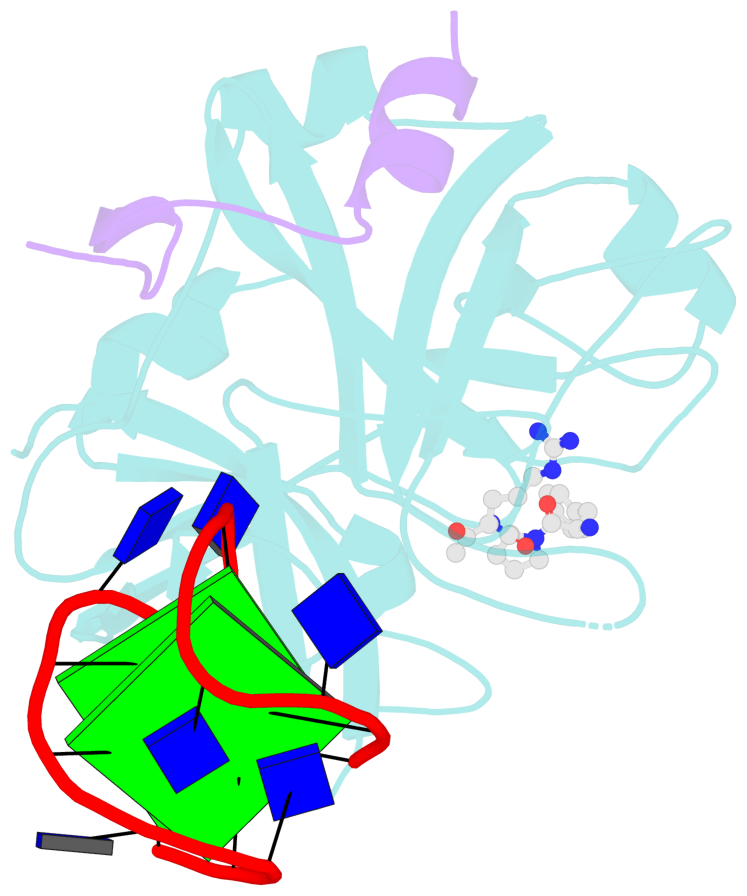

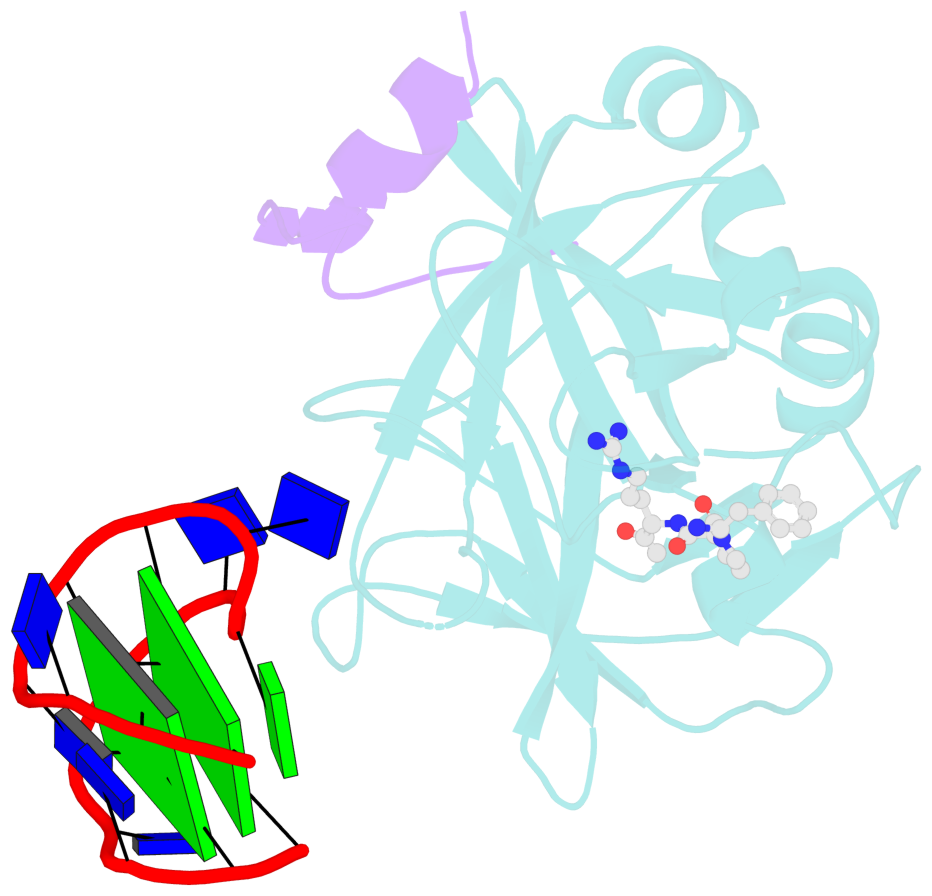

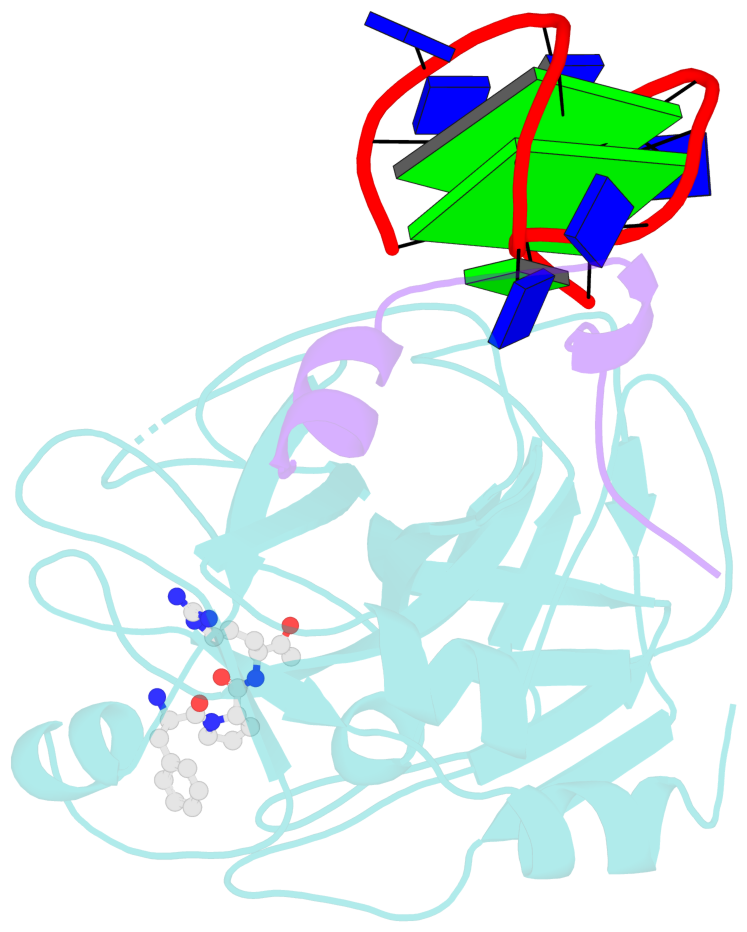

Cartoon-block schematics in six views (download the tarball)

PyMOL session file

Download PDB file

View in 3Dmol.js

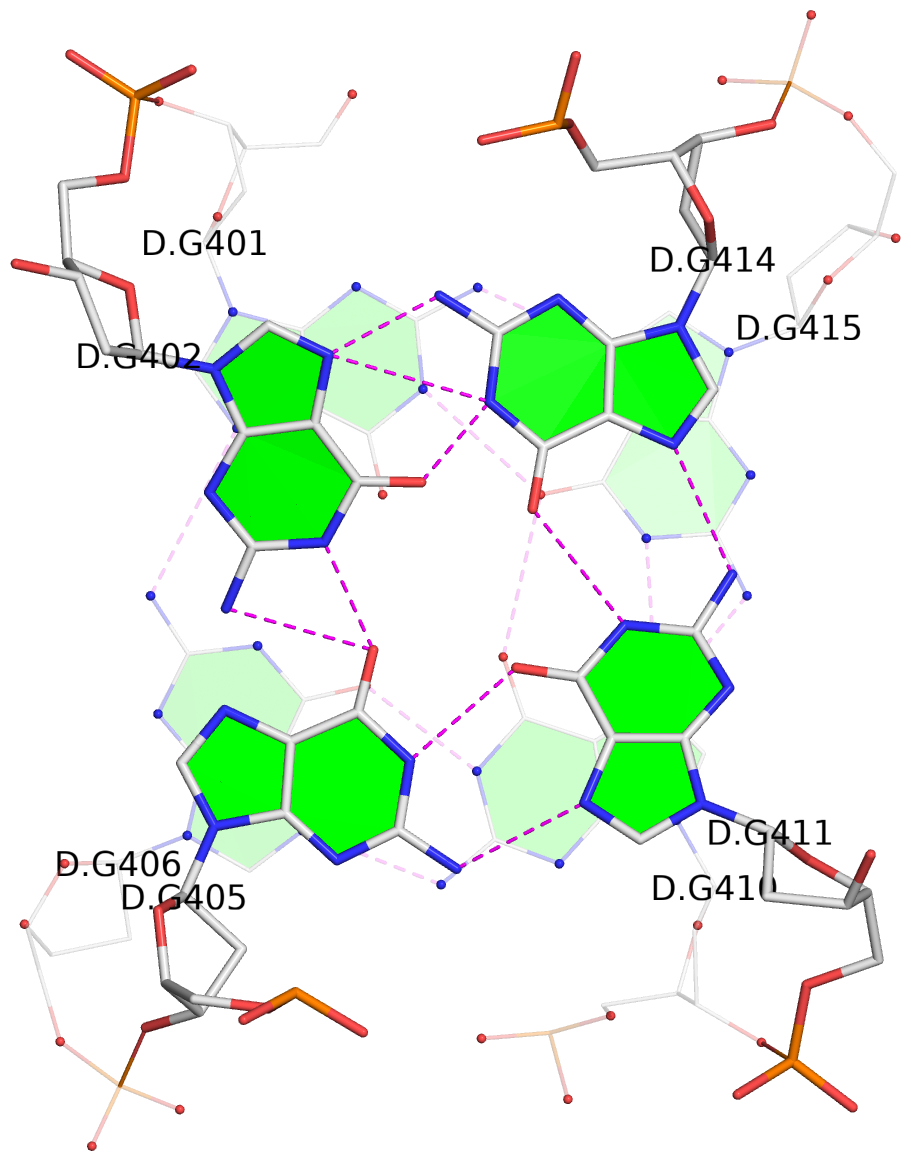

List of 2 G-tetrads

 1 glyco-bond=s-s- sugar=---- groove=wnwn planarity=0.381 type=other  O- nts=4 GGGG D.DG401,D.DG406,D.DG410,D.DG415
 2 glyco-bond=-s-s sugar=.--- groove=wnwn planarity=0.414 type=other  O+ nts=4 GGGG D.DG402,D.DG405,D.DG411,D.DG414

List of 1 G4-helix

In DSSR, a G4-helix is defined by stacking interactions of G-tetrads, regardless of backbone connectivity, and may contain more than one G4-stem.

Helix#1, 2 G-tetrads, INTRA-molecular, with 1 stem
 1  glyco-bond=s-s- sugar=---- groove=wnwn Major-->WC O- nts=4 GGGG D.DG401,D.DG406,D.DG410,D.DG415
 2  glyco-bond=-s-s sugar=.--- groove=wnwn WC-->Major O+ nts=4 GGGG D.DG402,D.DG405,D.DG411,D.DG414
  step#1  mm(<>,outward)  area=18.66 rise=3.49 twist=13.4
  strand#1 DNA glyco-bond=s- sugar=-. nts=2 GG D.DG401,D.DG402
  strand#2 DNA glyco-bond=-s sugar=-- nts=2 GG D.DG406,D.DG405
  strand#3 DNA glyco-bond=s- sugar=-- nts=2 GG D.DG410,D.DG411
  strand#4 DNA glyco-bond=-s sugar=-- nts=2 GG D.DG415,D.DG414

Download PDB file
Interactive view in 3Dmol.js

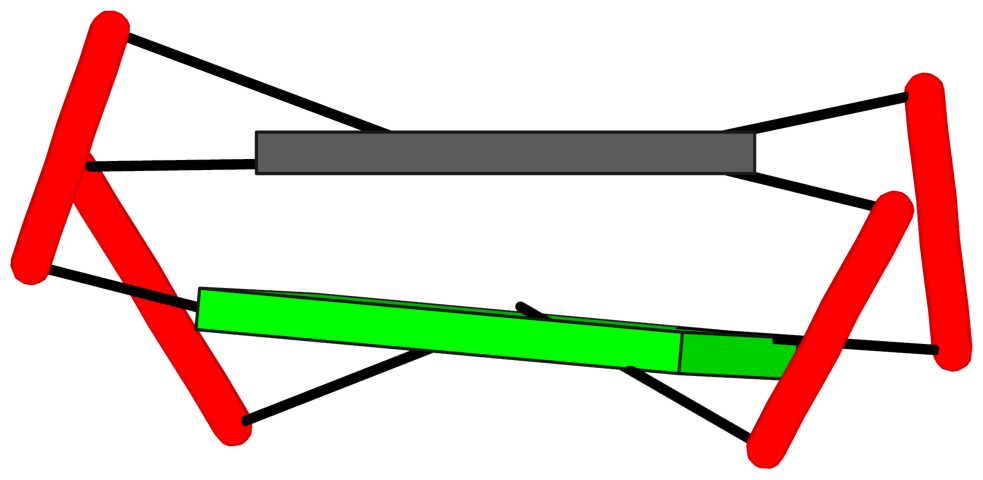

1 stacking diagram
 1  glyco-bond=s-s- sugar=---- groove=wnwn Major-->WC O- nts=4 GGGG D.DG401,D.DG406,D.DG410,D.DG415
 2  glyco-bond=-s-s sugar=.--- groove=wnwn WC-->Major O+ nts=4 GGGG D.DG402,D.DG405,D.DG411,D.DG414
  step#1  mm(<>,outward)  area=18.66 rise=3.49 twist=13.4

Download PDB file
Interactive view in 3Dmol.js

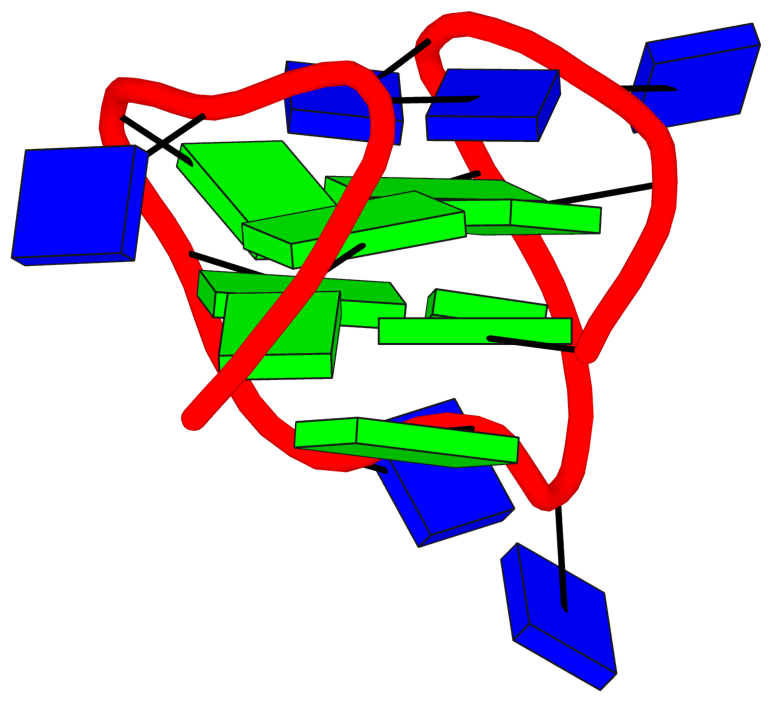

List of 1 G4-stem

In DSSR, a G4-stem is defined as a G4-helix with backbone connectivity. Bulges are also allowed along each of the four strands.

Stem#1, 2 G-tetrads, 3 loops, INTRA-molecular, UDUD, anti-parallel:chair, 2+2, 2(-Lw-Ln-Lw)
 1  glyco-bond=s-s- sugar=---- groove=wnwn Major-->WC O- nts=4 GGGG D.DG401,D.DG406,D.DG410,D.DG415
 2  glyco-bond=-s-s sugar=.--- groove=wnwn WC-->Major O+ nts=4 GGGG D.DG402,D.DG405,D.DG411,D.DG414
  step#1  mm(<>,outward)  area=18.66 rise=3.49 twist=13.4
  strand#1  U DNA glyco-bond=s- sugar=-. nts=2 GG D.DG401,D.DG402
  strand#2  D DNA glyco-bond=-s sugar=-- nts=2 GG D.DG406,D.DG405
  strand#3  U DNA glyco-bond=s- sugar=-- nts=2 GG D.DG410,D.DG411
  strand#4  D DNA glyco-bond=-s sugar=-- nts=2 GG D.DG415,D.DG414
  loop#1 type=lateral   strands=[#1,#2] nts=2 TT D.DT403,D.DT404
  loop#2 type=lateral   strands=[#2,#3] nts=3 TGT D.DT407,D.DG408,D.DT409
  loop#3 type=lateral   strands=[#3,#4] nts=2 TT D.DT412,D.DT413

Download PDB file
Interactive view in 3Dmol.js
