2avj
Class
DNA
Method
X-ray (2.39 Å)
Summary
G4(br)uttg4 dimeric quadruplex
Reference
Hazel P, Parkinson GN, Neidle S (2006): "Topology variation and loop structural homology in crystal and simulated structures of a bimolecular DNA quadruplex." J.Am.Chem.Soc., 128, 5480-5487. doi: 10.1021/ja058577+.
Abstract
The topology of DNA quadruplexes depends on the nature and number of the nucleotides linking G-quartet motifs. To assess the effects of a three-nucleotide TTT linker, the crystal structure of the DNA sequence d(G(4)T(3)G(4)) has been determined at 1.5 A resolution, together with that of the brominated analogue d(G(4)(Br)UTTG(4)) at 2.4 A resolution. Both sequences form bimolecular intermolecular G-quadruplexes with lateral loops. d(G(4)(Br)UTTG(4)) crystallized in the monoclinic space group P2(1) with three quadruplex molecules in the asymmetric unit, two associating together as a head-to-head stacked dimer, and the third as a single head-to-tail dimer. The head-to-head dimers have two lateral loops on the same G-quadruplex face and form an eight-G-quartet stack, with a linear array of seven K(+) ions between the quartets. d(G(4)T(3)G(4)) crystallized in the orthorhombic space group C222 and has a structure very similar to the head-to-tail dimer in the P2(1) unit cell. The sequence studied here is able to form several different folds; however, all four quadruplexes in the two structures have lateral loops, in contrast to the diagonal loops reported for the analogous quadruplex with T(4) loops. A total of seven independent T(3) loops were observed in the two structures. These can be classified into two discrete conformational classes, suggesting that these represent preferred loop conformations that are independent of crystal-packing forces.
G4 notes
4 G-tetrads, 1 G4 helix, 1 G4 stem, UDUD, anti-parallel:chair, 2+2

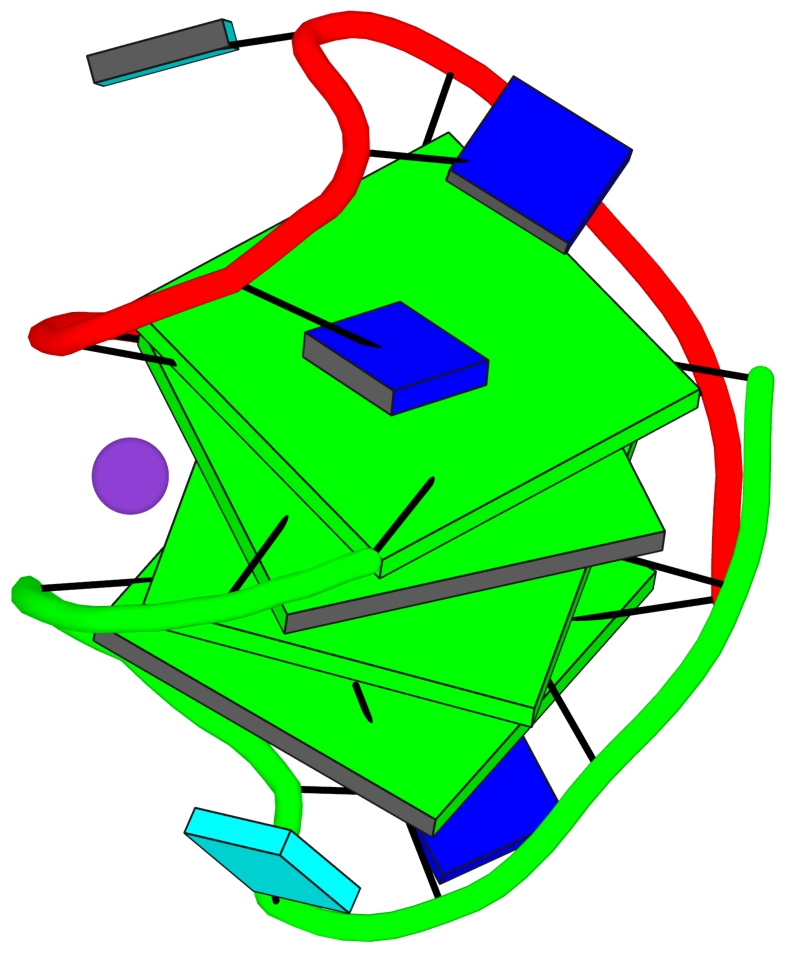

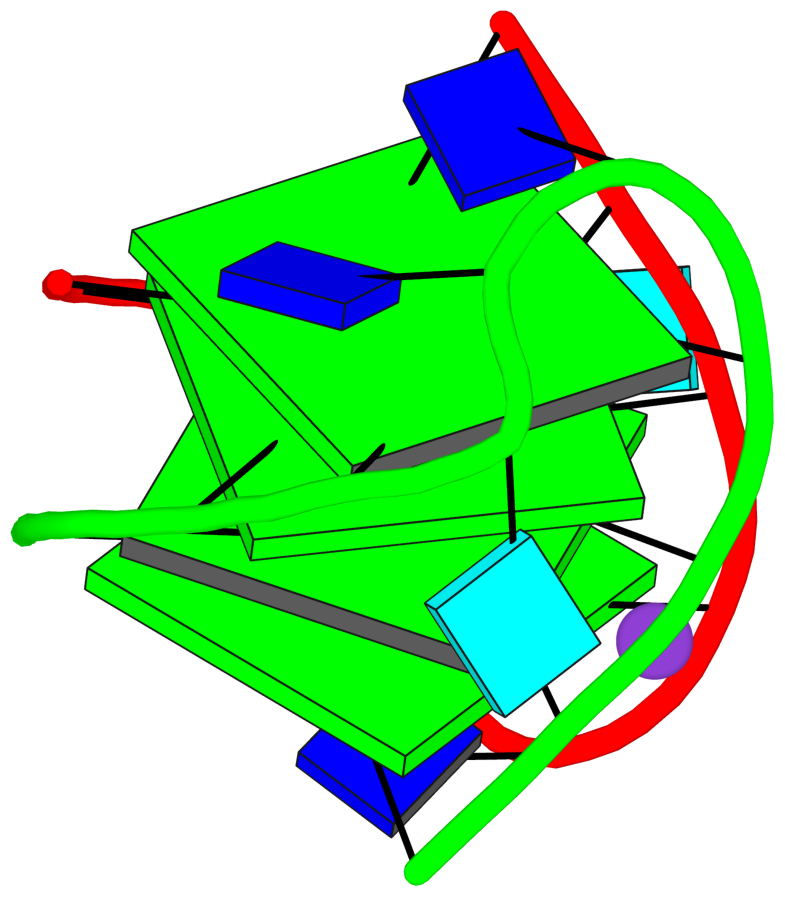

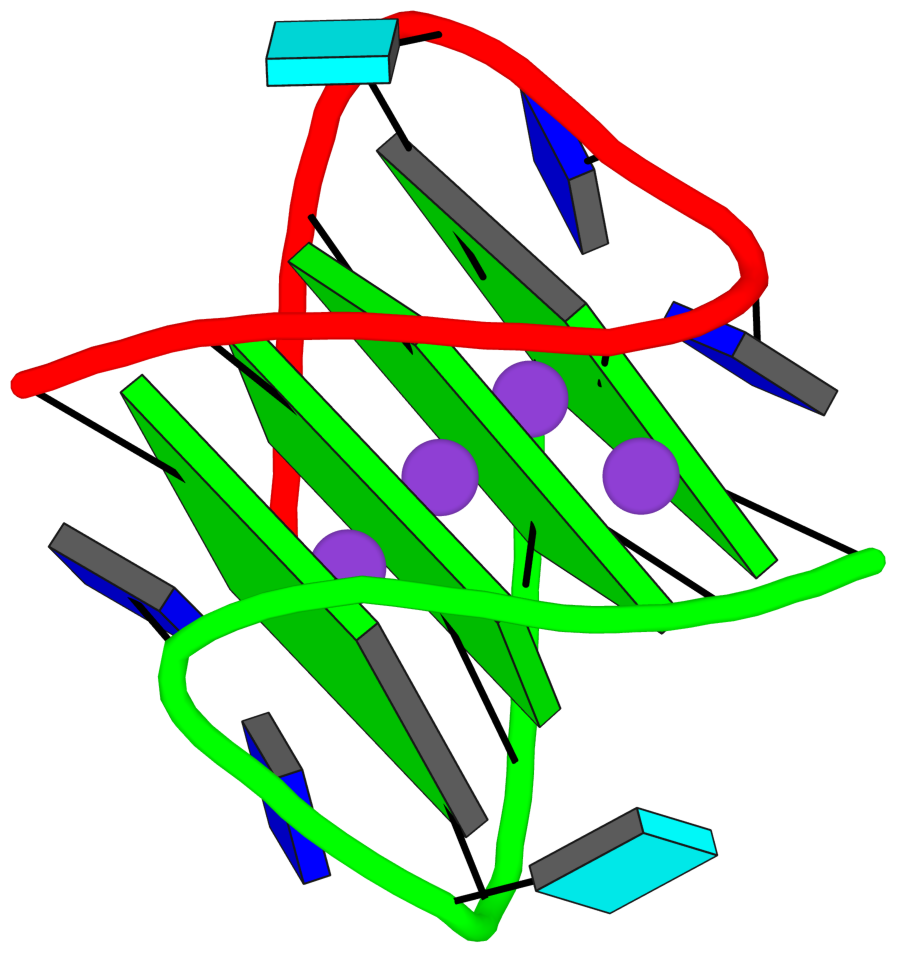

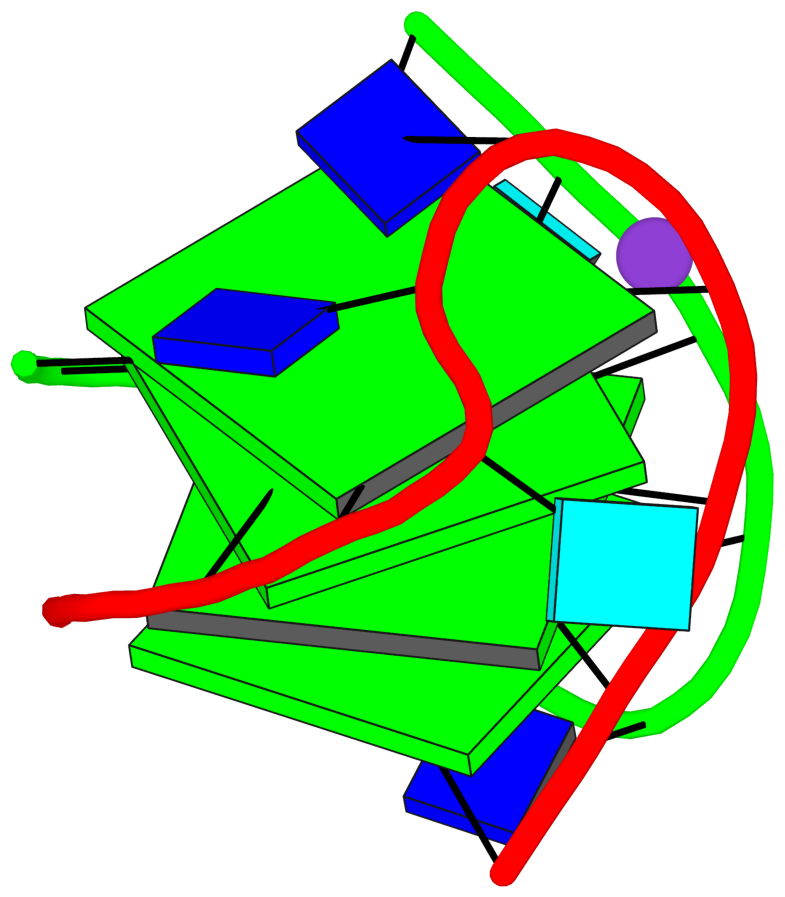

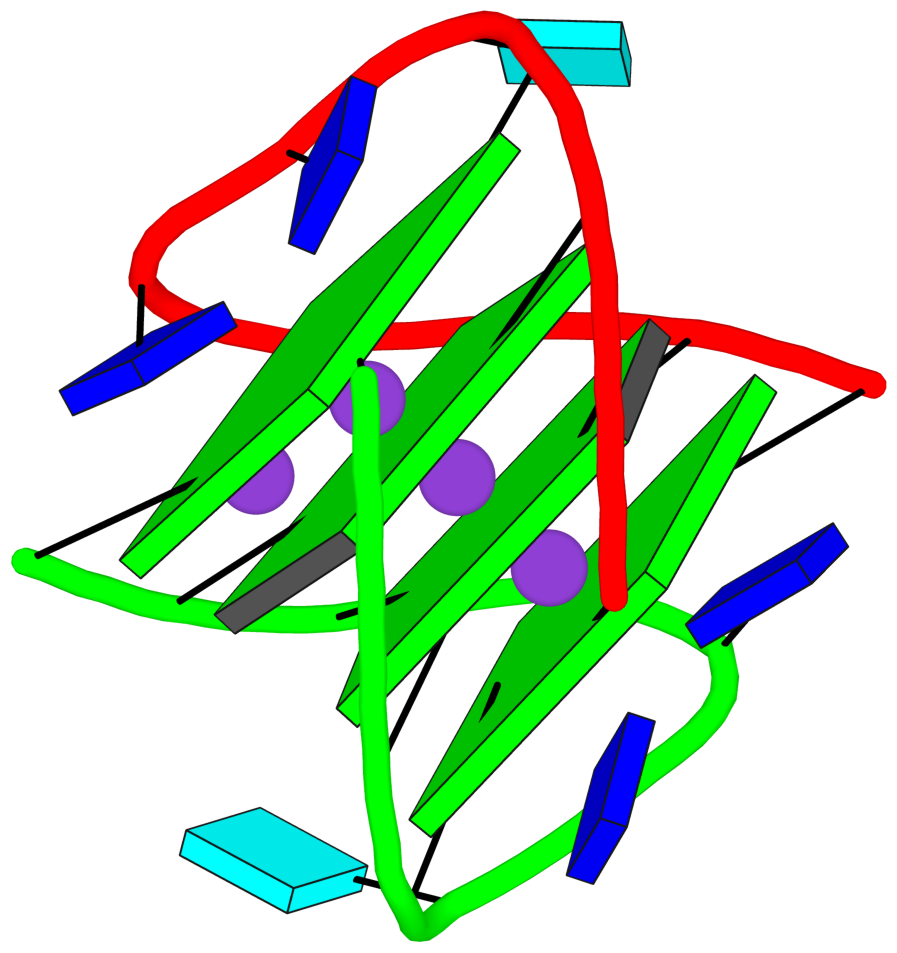

Cartoon-block schematics in six views (download the tarball)

PyMOL session file

Download PDB file

View in 3Dmol.js

List of 4 G-tetrads

 1 glyco-bond=s-s- sugar=---- groove=wnwn planarity=0.452 type=bowl   -- nts=4 GGGG 1:A.DG1,1:A.DG11,1:B.DG19,1:B.DG15
 2 glyco-bond=-s-s sugar=---- groove=wnwn planarity=0.343 type=other  -- nts=4 GGGG 1:A.DG2,1:A.DG10,1:B.DG20,1:B.DG14
 3 glyco-bond=s-s- sugar=---- groove=wnwn planarity=0.282 type=other  -- nts=4 GGGG 1:A.DG3,1:A.DG9,1:B.DG21,1:B.DG13
 4 glyco-bond=-s-s sugar=---- groove=wnwn planarity=0.411 type=bowl   -- nts=4 GGGG 1:A.DG4,1:A.DG8,1:B.DG22,1:B.DG12

List of 1 G4-helix

In DSSR, a G4-helix is defined by stacking interactions of G-tetrads, regardless of backbone connectivity, and may contain more than one G4-stem.

Helix#1, 4 G-tetrads, inter-molecular, with 1 stem

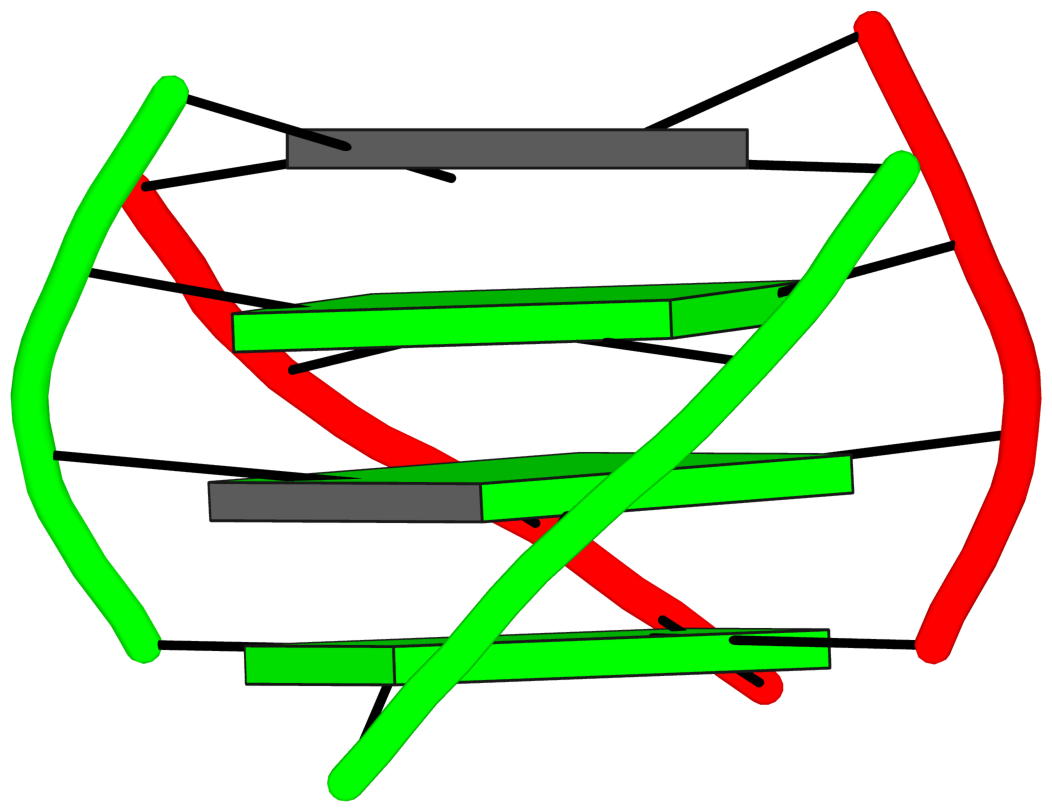

 1  glyco-bond=s-s- sugar=---- groove=wnwn Major-->WC -- nts=4 GGGG 1:A.DG1,1:A.DG11,1:B.DG19,1:B.DG15
 2  glyco-bond=-s-s sugar=---- groove=wnwn WC-->Major -- nts=4 GGGG 1:A.DG2,1:A.DG10,1:B.DG20,1:B.DG14
 3  glyco-bond=s-s- sugar=---- groove=wnwn Major-->WC -- nts=4 GGGG 1:A.DG3,1:A.DG9,1:B.DG21,1:B.DG13
 4  glyco-bond=-s-s sugar=---- groove=wnwn WC-->Major -- nts=4 GGGG 1:A.DG4,1:A.DG8,1:B.DG22,1:B.DG12
  step#1  mm(<>,outward)  area=14.79 rise=3.50 twist=17.7
  step#2  pp(><,inward)   area=20.47 rise=3.58 twist=36.1
  step#3  mm(<>,outward)  area=14.54 rise=3.54 twist=17.3
  strand#1 DNA glyco-bond=s-s- sugar=---- nts=4 GGGG 1:A.DG1,1:A.DG2,1:A.DG3,1:A.DG4
  strand#2 DNA glyco-bond=-s-s sugar=---- nts=4 GGGG 1:A.DG11,1:A.DG10,1:A.DG9,1:A.DG8
  strand#3 DNA glyco-bond=s-s- sugar=---- nts=4 GGGG 1:B.DG19,1:B.DG20,1:B.DG21,1:B.DG22
  strand#4 DNA glyco-bond=-s-s sugar=---- nts=4 GGGG 1:B.DG15,1:B.DG14,1:B.DG13,1:B.DG12

Download PDB file
Interactive view in 3Dmol.js
3 stacking diagrams

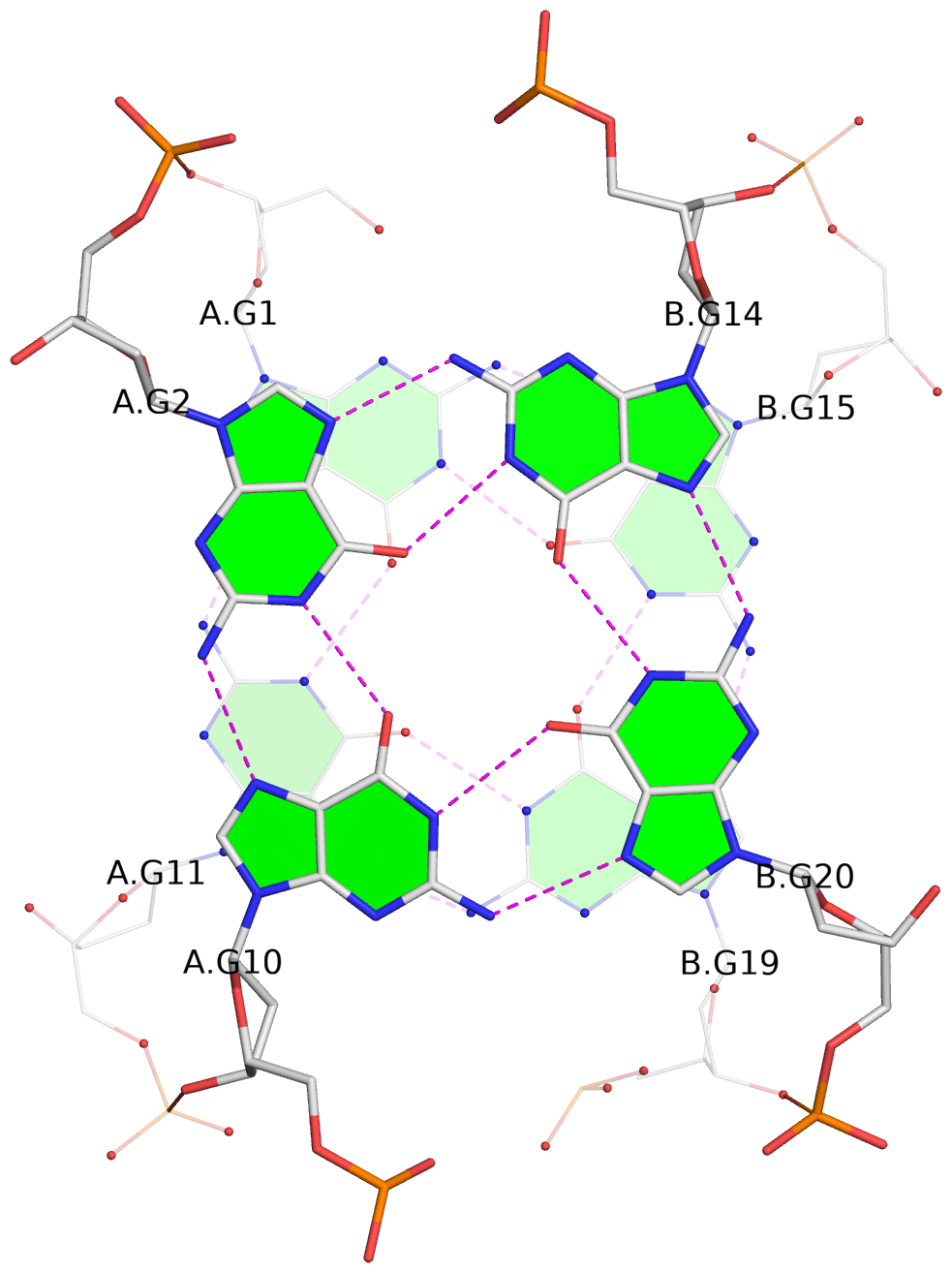

 1  glyco-bond=s-s- sugar=---- groove=wnwn Major-->WC -- nts=4 GGGG 1:A.DG1,1:A.DG11,1:B.DG19,1:B.DG15

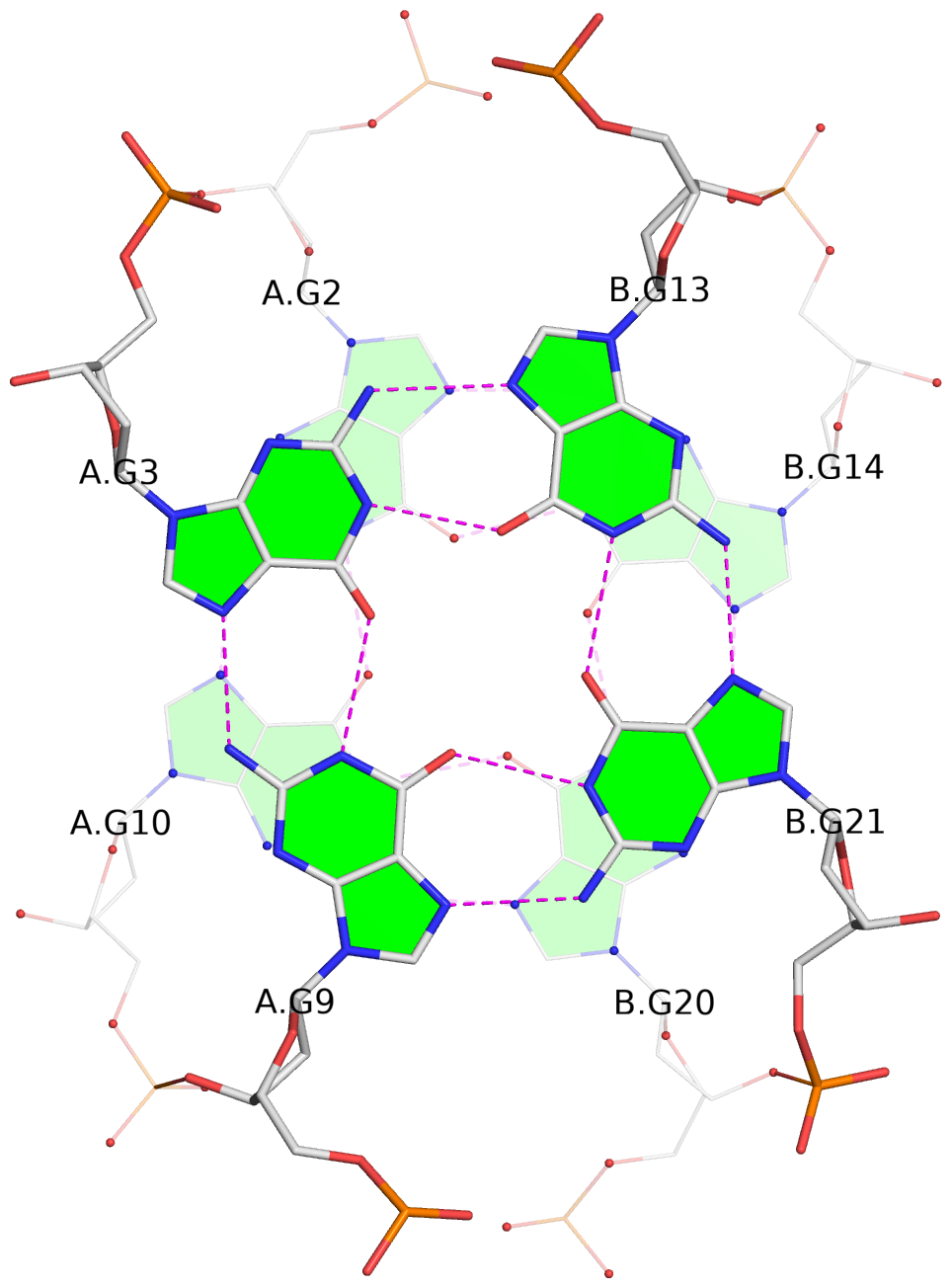

 2  glyco-bond=-s-s sugar=---- groove=wnwn WC-->Major -- nts=4 GGGG 1:A.DG2,1:A.DG10,1:B.DG20,1:B.DG14
  step#1  mm(<>,outward)  area=14.79 rise=3.50 twist=17.7

Download PDB file
Interactive view in 3Dmol.js


 2  glyco-bond=-s-s sugar=---- groove=wnwn WC-->Major -- nts=4 GGGG 1:A.DG2,1:A.DG10,1:B.DG20,1:B.DG14
 3  glyco-bond=s-s- sugar=---- groove=wnwn Major-->WC -- nts=4 GGGG 1:A.DG3,1:A.DG9,1:B.DG21,1:B.DG13
  step#2  pp(><,inward)   area=20.47 rise=3.58 twist=36.1

Download PDB file
Interactive view in 3Dmol.js


 3  glyco-bond=s-s- sugar=---- groove=wnwn Major-->WC -- nts=4 GGGG 1:A.DG3,1:A.DG9,1:B.DG21,1:B.DG13

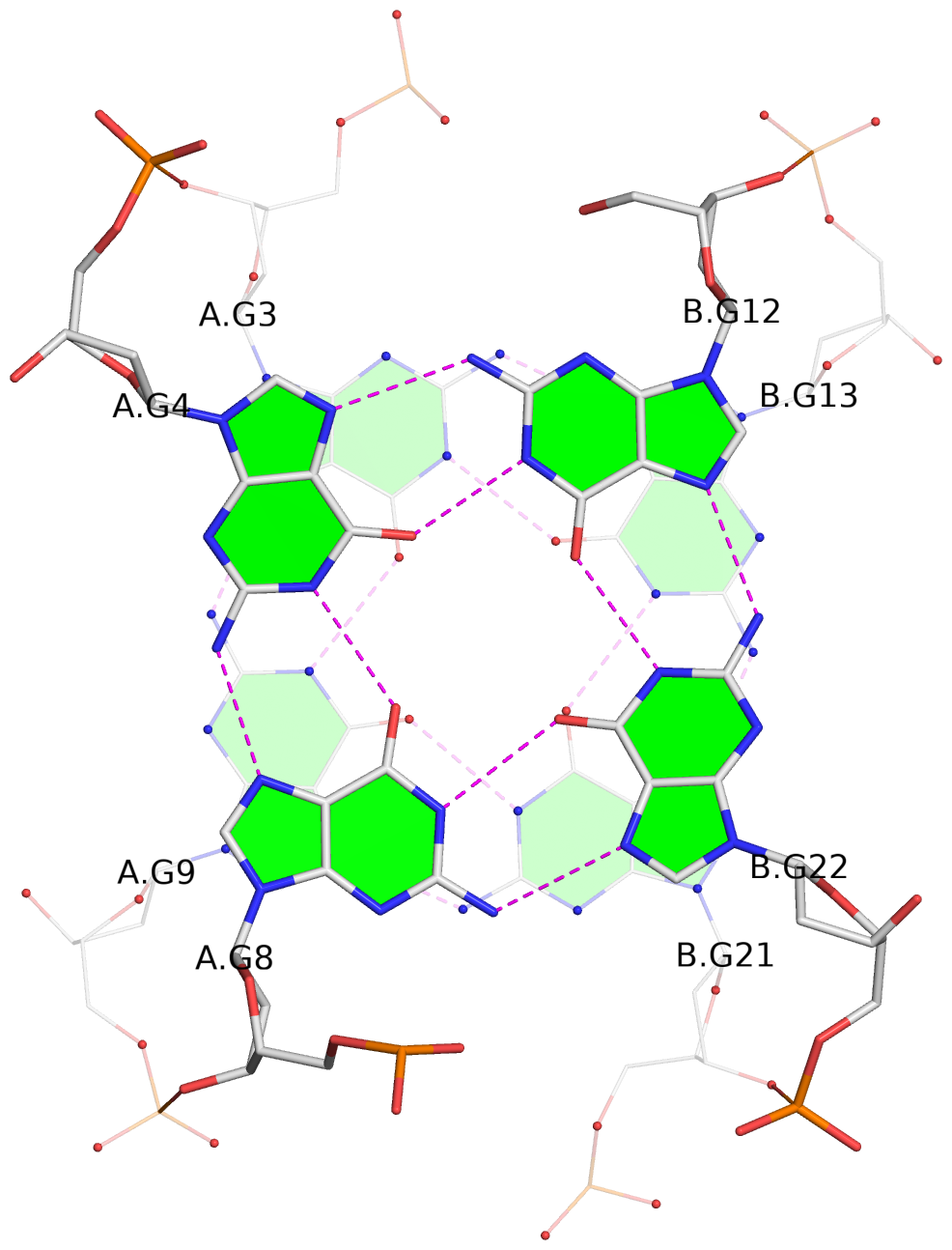

 4  glyco-bond=-s-s sugar=---- groove=wnwn WC-->Major -- nts=4 GGGG 1:A.DG4,1:A.DG8,1:B.DG22,1:B.DG12
  step#3  mm(<>,outward)  area=14.54 rise=3.54 twist=17.3

Download PDB file
Interactive view in 3Dmol.js

List of 1 G4-stem

In DSSR, a G4-stem is defined as a G4-helix with backbone connectivity. Bulges are also allowed along each of the four strands.

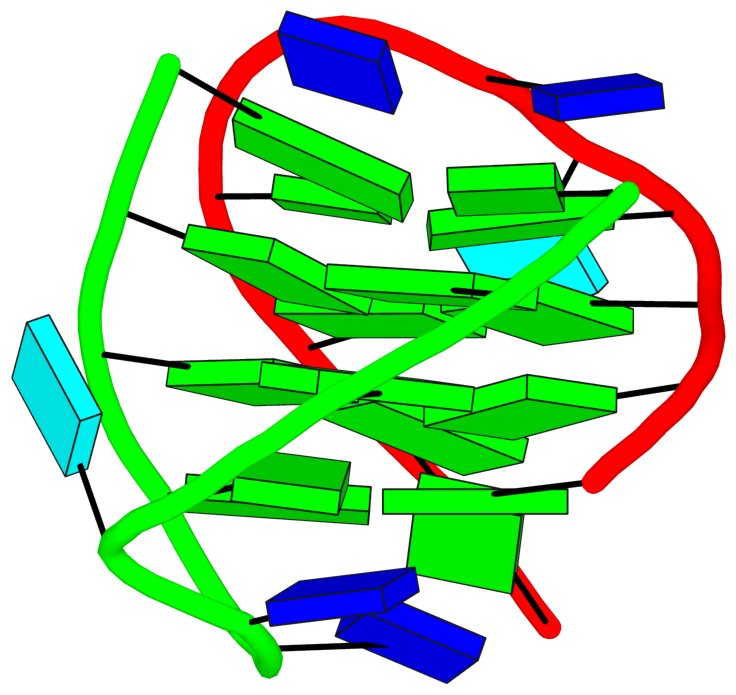

Stem#1, 4 G-tetrads, 2 loops, inter-molecular, UDUD, anti-parallel:chair, 2+2
