DSSR-enabled G4 identification/annotation: PDB entry 5oph
Summary information and primary citation
- PDB-id
- 5oph
- Class
- DNA
- Method
- NMR
- Summary
- G-quadruplex structure of DNA oligonucleotide containing ggggcc repeats linked to als and ftd
- Reference
- Brcic J, Plavec J (2018): "NMR structure of a G-quadruplex formed by four d(G4C2) repeats: insights into structural polymorphism." Nucleic Acids Res., 46, 11605-11617. doi: 10.1093/nar/gky886.
- Abstract
- Most frequent genetic cause of amyotrophic lateral sclerosis (ALS) and frontotemporal dementia (FTD), is a largely increased number of d(G4C2)n•(G2C4)n repeats located in the non-coding region of C9orf72 gene. Non-canonical structures, including G-quadruplexes, formed within expanded repeats have been proposed to drive repeat expansion and pathogenesis of ALS and FTD. Oligonucleotide d[(G4C2)3G4], which represents the shortest oligonucleotide model of d(G4C2) repeats with the ability to form a unimolecular G-quadruplex, forms two major G-quadruplex structures in addition to several minor species which coexist in solution with K+ ions. Herein, we used solution-state NMR to determine the high-resolution structure of one of the major G-quadruplex species adopted by d[(G4C2)3G4]. Structural characterization of the G-quadruplex named AQU was facilitated by a single substitution of dG with 8Br-dG at position 21 and revealed an antiparallel fold composed of four G-quartets and three lateral C-C loops. The G-quadruplex exhibits high thermal stability and is favored kinetically and under slightly acidic conditions. An unusual structural element distinct from a C-quartet is observed in the structure. Two C•C base pairs are stacked on the nearby G-quartet and are involved in a dynamic equilibrium between symmetric N3-amino and carbonyl-amino geometries and protonated C+•C state.
- G4 notes
- 4 G-tetrads, 1 G4 helix, 1 G4 stem, UDUD, anti-parallel:chair, 2+2, 4(-Lw-Ln-Lw)

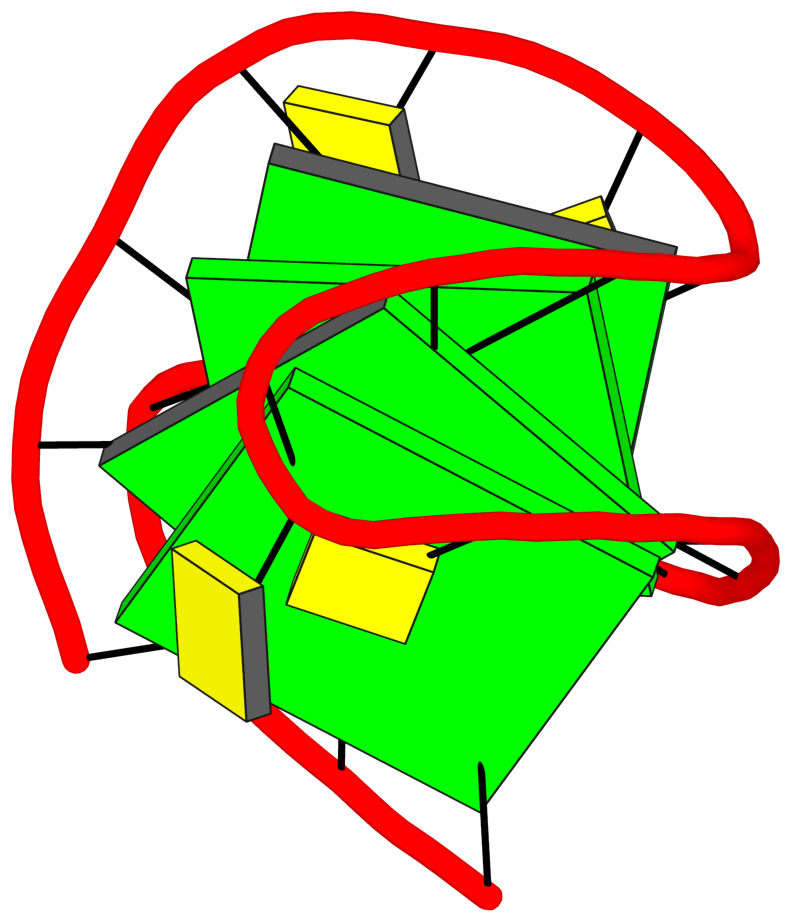

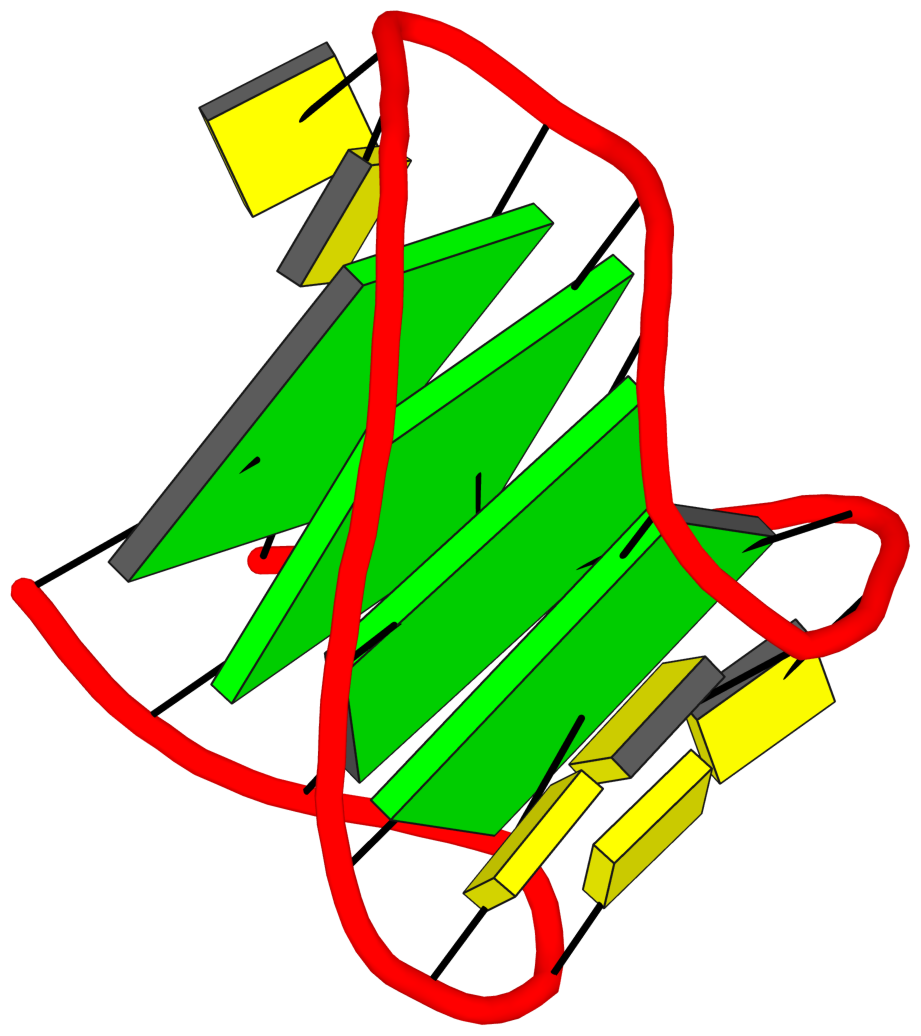

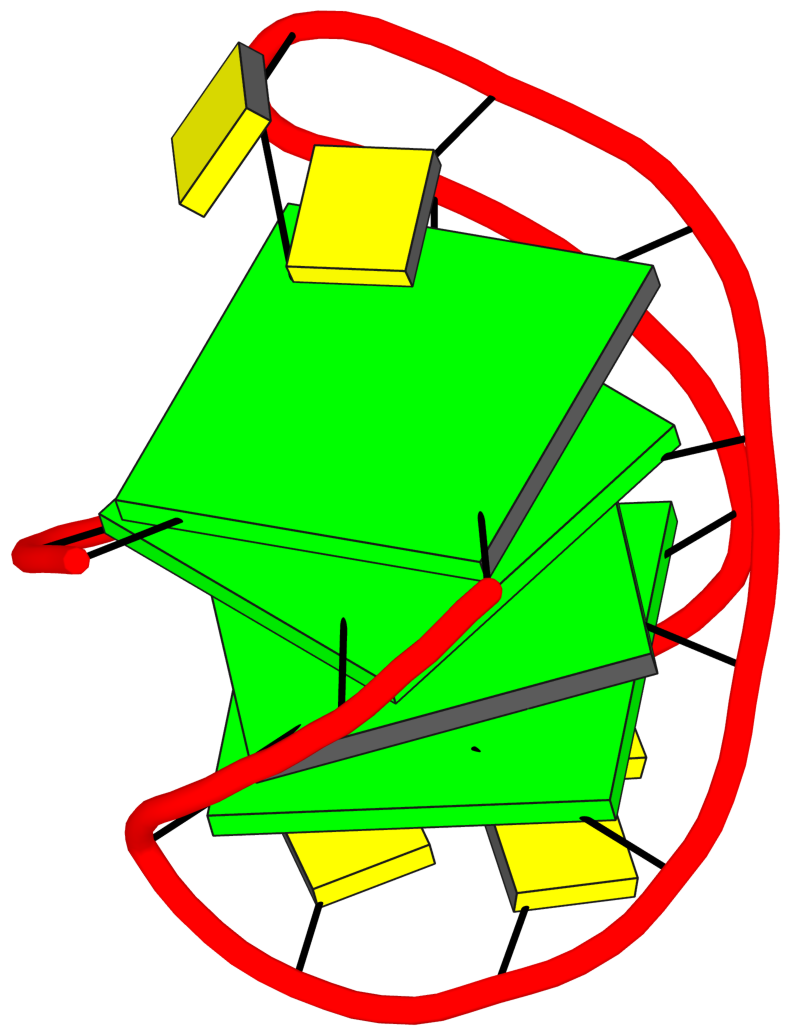

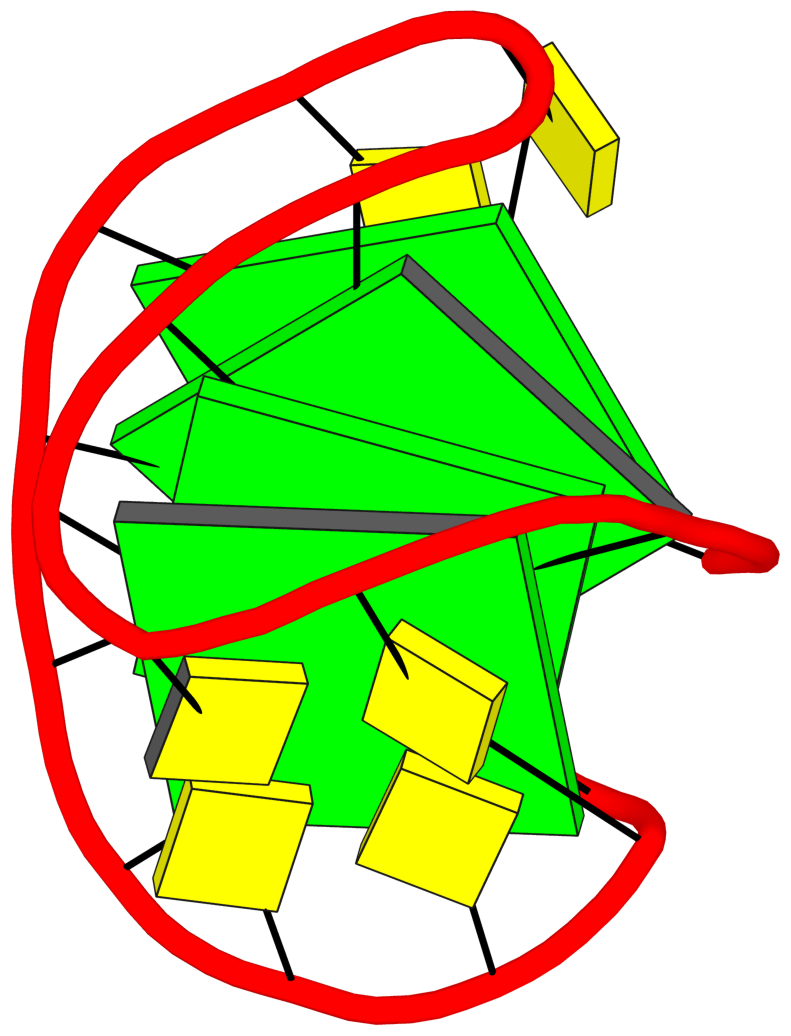

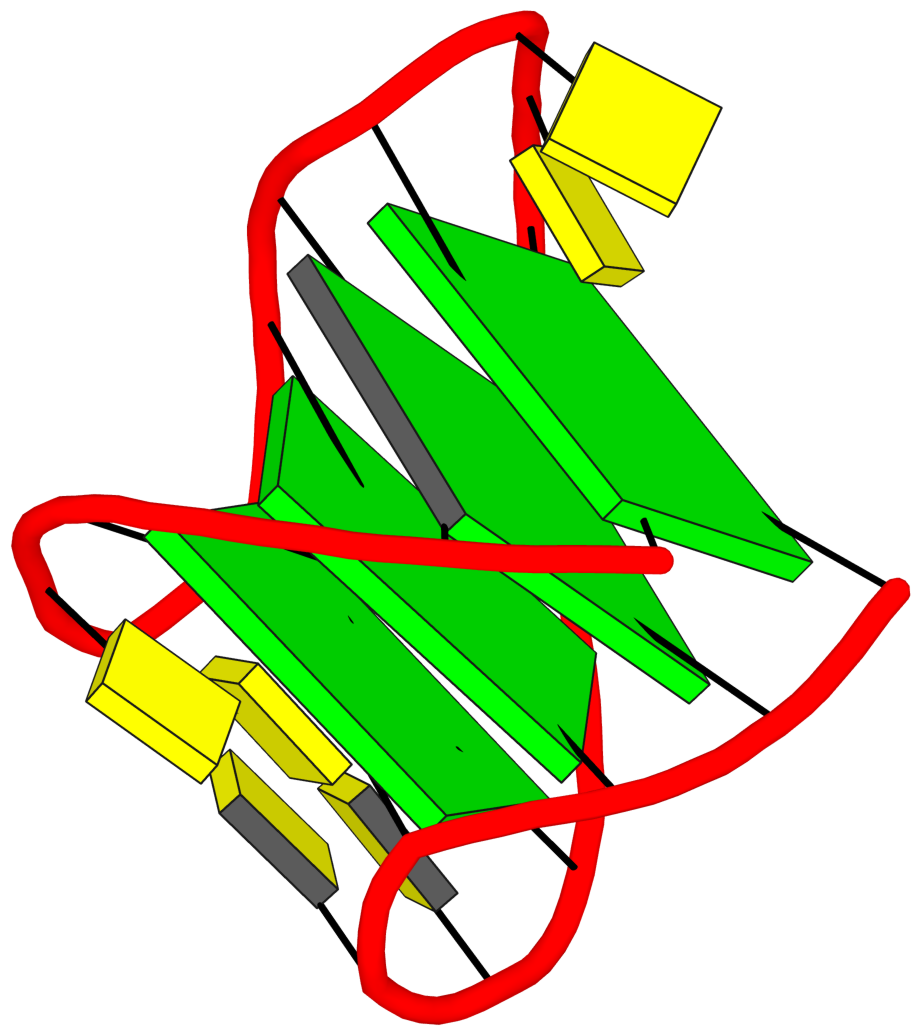

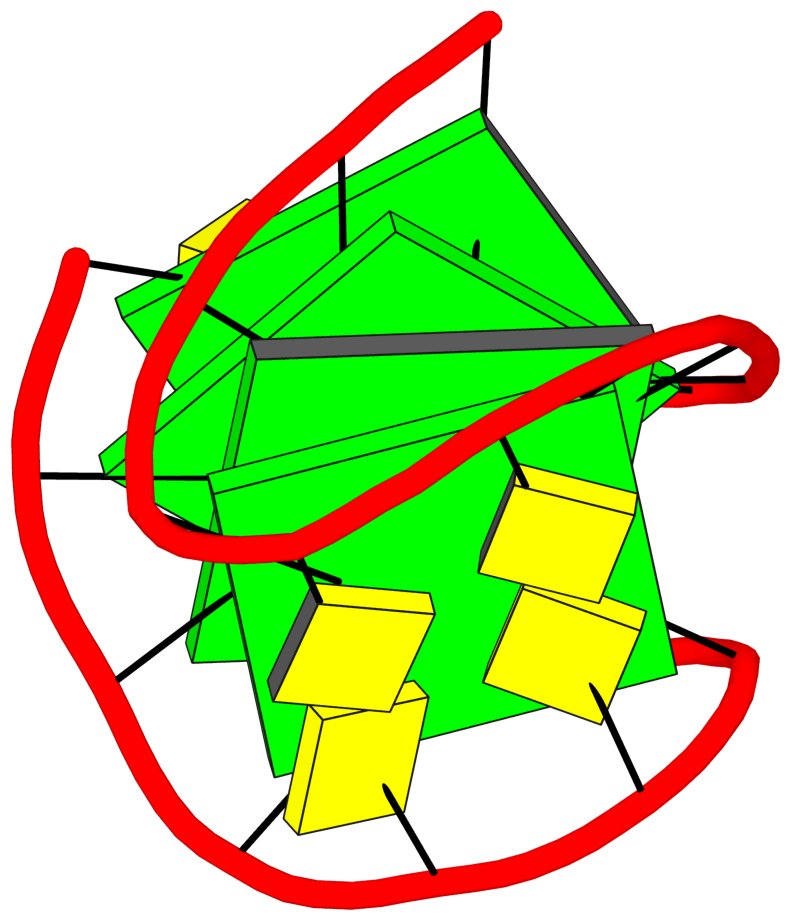

Cartoon-block schematics in six views (download the tarball)
List of 4 G-tetrads
1 glyco-bond=s-s- sugar=---- groove=wnwn planarity=0.279 type=bowl O- nts=4 GGGG A.DG1,A.DG10,A.DG13,A.DG22 2 glyco-bond=-s-s sugar=---- groove=wnwn planarity=0.178 type=other O+ nts=4 GGGg A.DG2,A.DG9,A.DG14,A.BGM21 3 glyco-bond=s-s- sugar=---- groove=wnwn planarity=0.176 type=other O- nts=4 GGGG A.DG3,A.DG8,A.DG15,A.DG20 4 glyco-bond=-s-s sugar=---- groove=wnwn planarity=0.292 type=other O+ nts=4 GGGG A.DG4,A.DG7,A.DG16,A.DG19

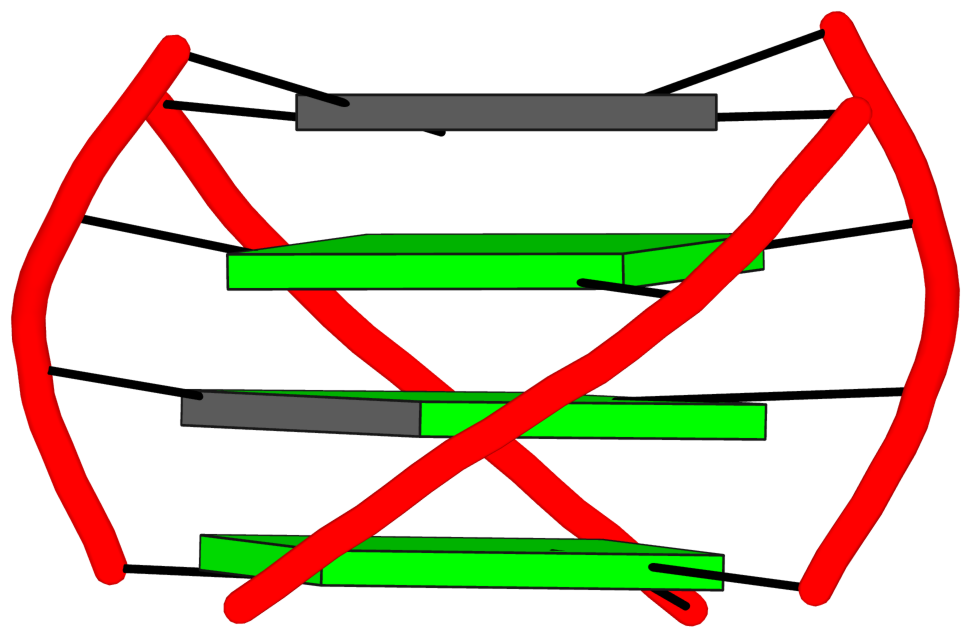

List of 1 G4-helix
In DSSR, a G4-helix is defined by stacking interactions of G-tetrads, regardless of backbone connectivity, and may contain more than one G4-stem.
Helix#1, 4 G-tetrads, INTRA-molecular, with 1 stem
|
1 glyco-bond=s-s- sugar=---- groove=wnwn Major-->WC O- nts=4 GGGG A.DG1,A.DG10,A.DG13,A.DG22 2 glyco-bond=-s-s sugar=---- groove=wnwn WC-->Major O+ nts=4 GGGg A.DG2,A.DG9,A.DG14,A.BGM21 3 glyco-bond=s-s- sugar=---- groove=wnwn Major-->WC O- nts=4 GGGG A.DG3,A.DG8,A.DG15,A.DG20 4 glyco-bond=-s-s sugar=---- groove=wnwn WC-->Major O+ nts=4 GGGG A.DG4,A.DG7,A.DG16,A.DG19 step#1 mm(<>,outward) area=16.18 rise=3.43 twist=19.5 step#2 pp(><,inward) area=15.26 rise=3.49 twist=35.9 step#3 mm(<>,outward) area=16.48 rise=3.39 twist=17.8 strand#1 DNA glyco-bond=s-s- sugar=---- nts=4 GGGG A.DG1,A.DG2,A.DG3,A.DG4 strand#2 DNA glyco-bond=-s-s sugar=---- nts=4 GGGG A.DG10,A.DG9,A.DG8,A.DG7 strand#3 DNA glyco-bond=s-s- sugar=---- nts=4 GGGG A.DG13,A.DG14,A.DG15,A.DG16 strand#4 DNA glyco-bond=-s-s sugar=---- nts=4 GgGG A.DG22,A.BGM21,A.DG20,A.DG19 |

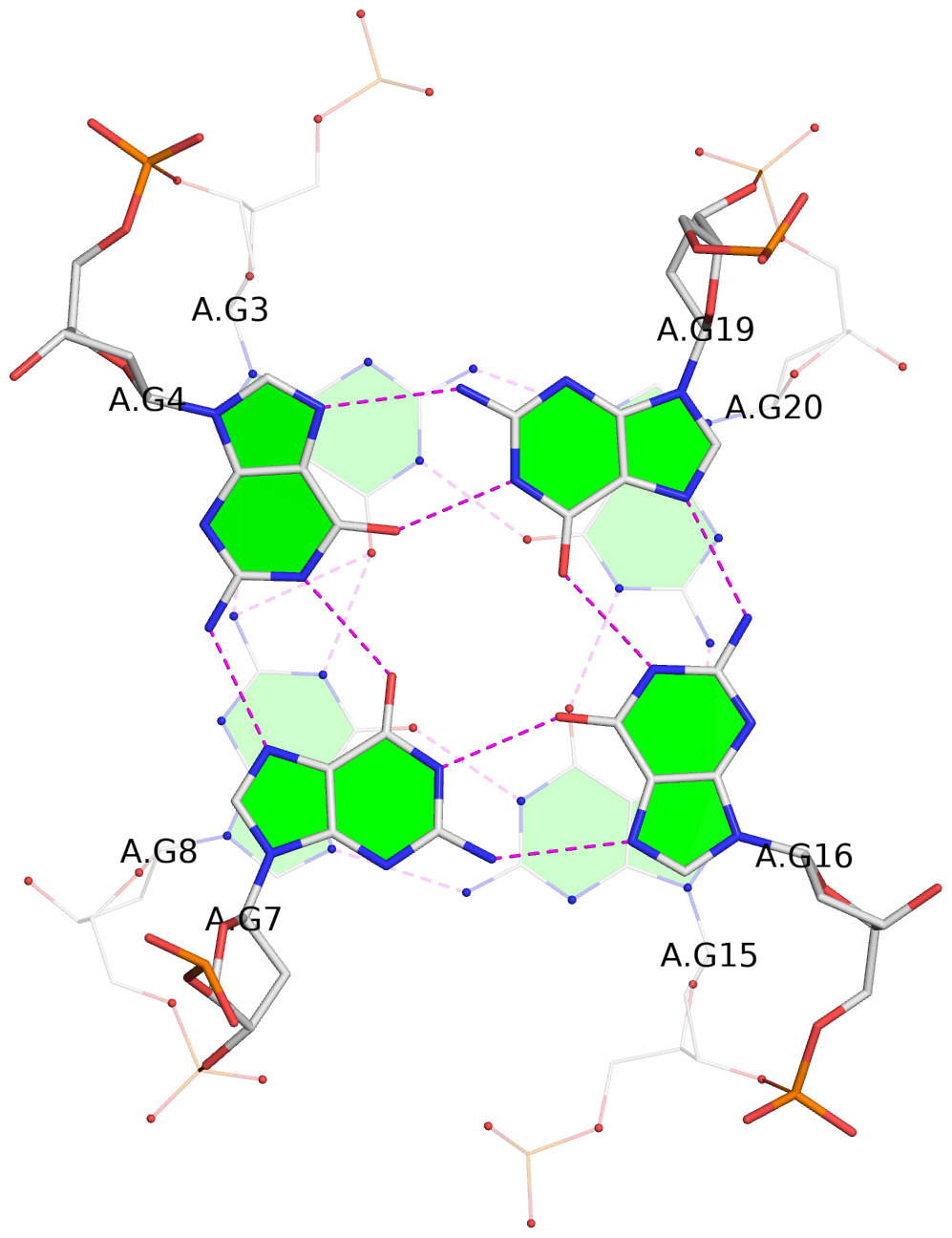

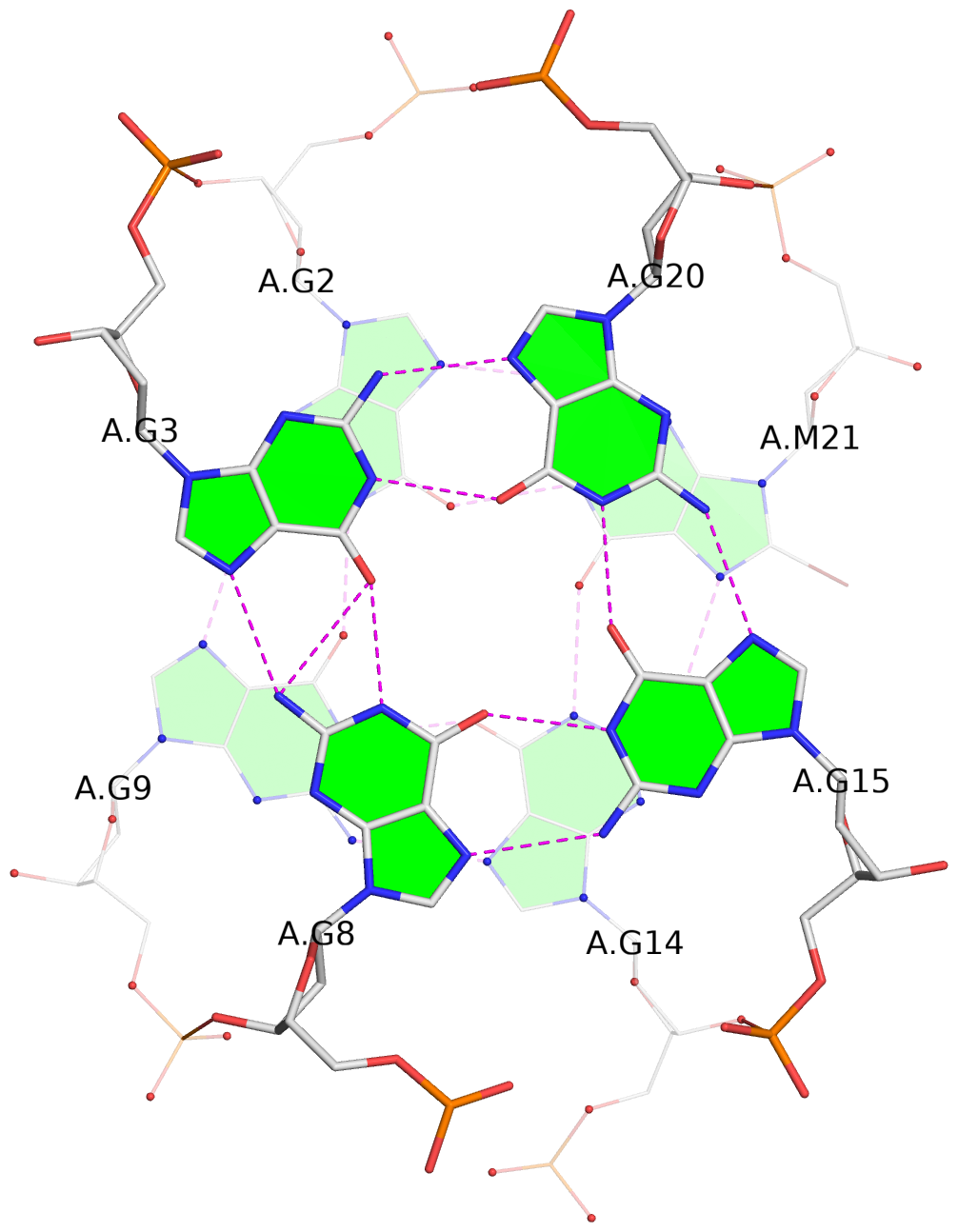

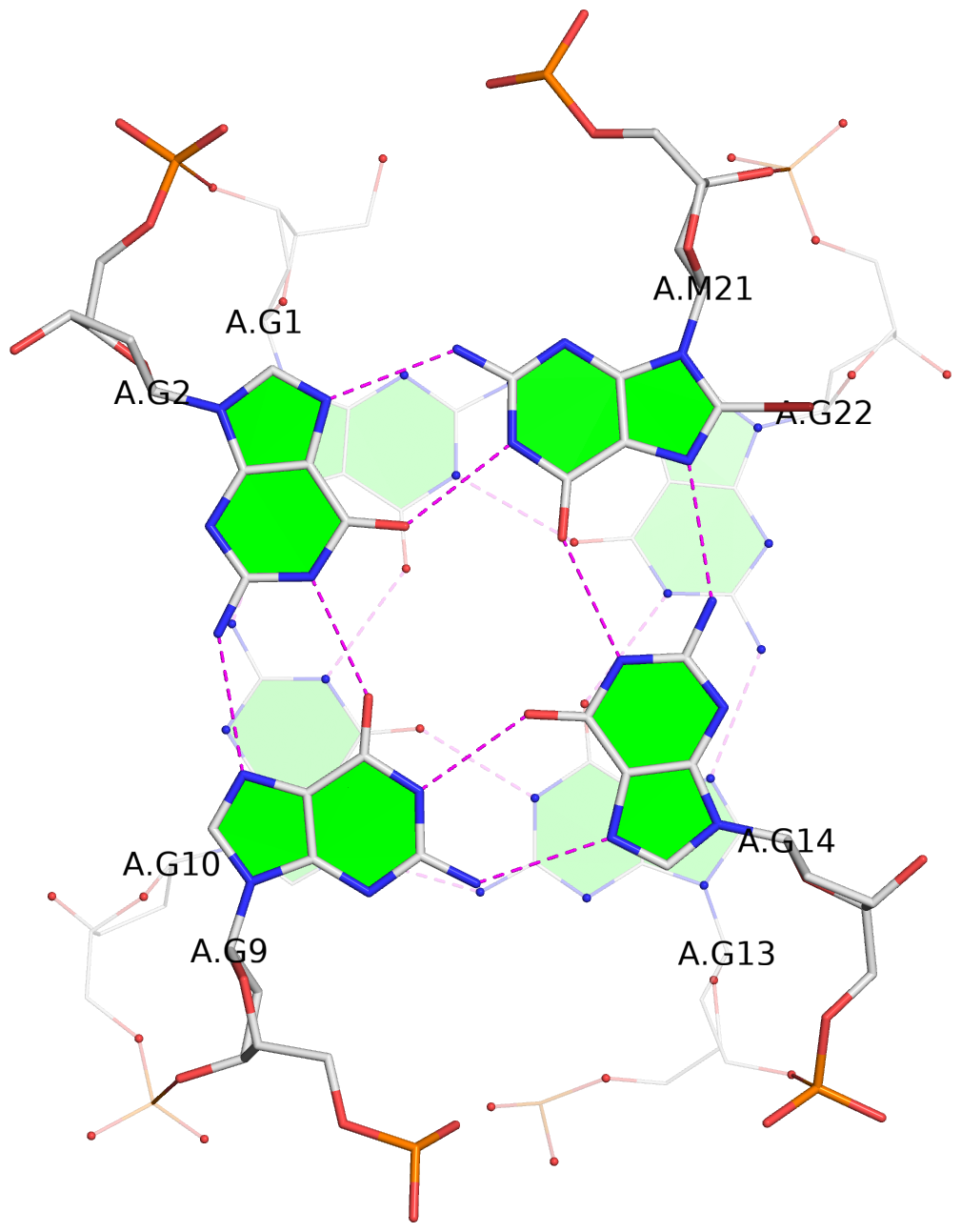

| 3 stacking diagrams | |
|
1 glyco-bond=s-s- sugar=---- groove=wnwn Major-->WC O- nts=4 GGGG A.DG1,A.DG10,A.DG13,A.DG22 |
|
2 glyco-bond=-s-s sugar=---- groove=wnwn WC-->Major O+ nts=4 GGGg A.DG2,A.DG9,A.DG14,A.BGM21 |
|
3 glyco-bond=s-s- sugar=---- groove=wnwn Major-->WC O- nts=4 GGGG A.DG3,A.DG8,A.DG15,A.DG20 |

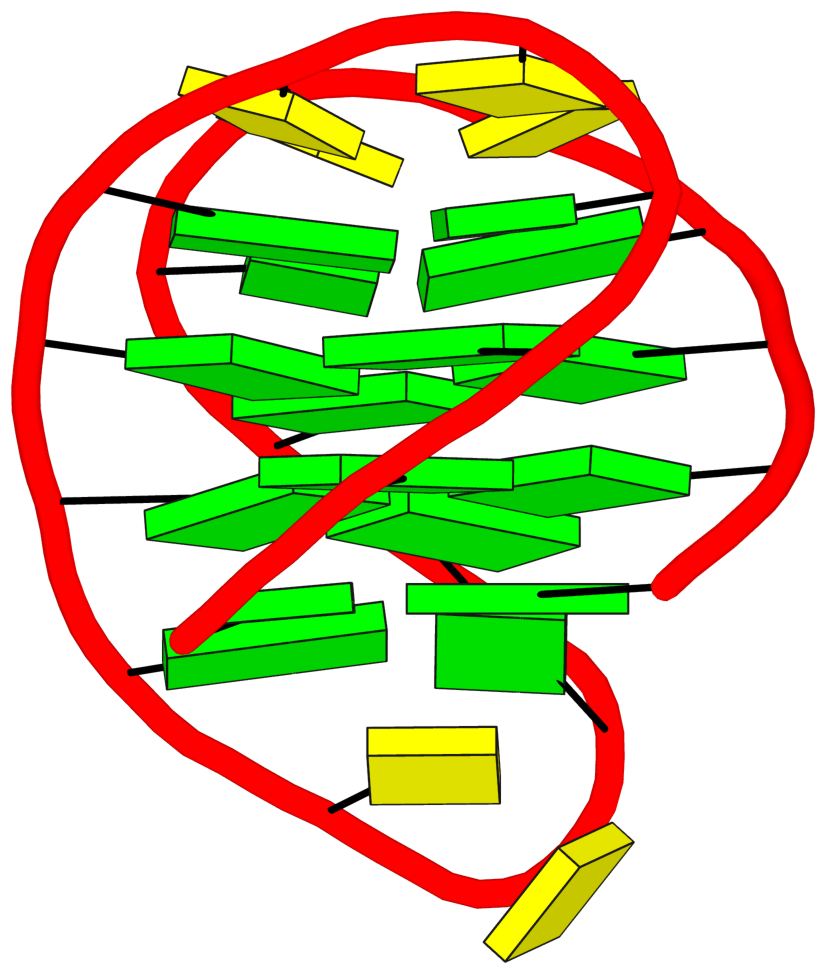

List of 1 G4-stem
In DSSR, a G4-stem is defined as a G4-helix with backbone connectivity. Bulges are also allowed along each of the four strands.
Stem#1, 4 G-tetrads, 3 loops, INTRA-molecular, UDUD, anti-parallel:chair, 2+2, 4(-Lw-Ln-Lw)
|
1 glyco-bond=s-s- sugar=---- groove=wnwn Major-->WC O- nts=4 GGGG A.DG1,A.DG10,A.DG13,A.DG22 2 glyco-bond=-s-s sugar=---- groove=wnwn WC-->Major O+ nts=4 GGGg A.DG2,A.DG9,A.DG14,A.BGM21 3 glyco-bond=s-s- sugar=---- groove=wnwn Major-->WC O- nts=4 GGGG A.DG3,A.DG8,A.DG15,A.DG20 4 glyco-bond=-s-s sugar=---- groove=wnwn WC-->Major O+ nts=4 GGGG A.DG4,A.DG7,A.DG16,A.DG19 step#1 mm(<>,outward) area=16.18 rise=3.43 twist=19.5 step#2 pp(><,inward) area=15.26 rise=3.49 twist=35.9 step#3 mm(<>,outward) area=16.48 rise=3.39 twist=17.8 strand#1 U DNA glyco-bond=s-s- sugar=---- nts=4 GGGG A.DG1,A.DG2,A.DG3,A.DG4 strand#2 D DNA glyco-bond=-s-s sugar=---- nts=4 GGGG A.DG10,A.DG9,A.DG8,A.DG7 strand#3 U DNA glyco-bond=s-s- sugar=---- nts=4 GGGG A.DG13,A.DG14,A.DG15,A.DG16 strand#4 D DNA glyco-bond=-s-s sugar=---- nts=4 GgGG A.DG22,A.BGM21,A.DG20,A.DG19 loop#1 type=lateral strands=[#1,#2] nts=2 CC A.DC5,A.DC6 loop#2 type=lateral strands=[#2,#3] nts=2 CC A.DC11,A.DC12 loop#3 type=lateral strands=[#3,#4] nts=2 CC A.DC17,A.DC18 |
