DSSR-enabled G4 identification/annotation: PDB entry 6k3y
Summary information and primary citation
- PDB-id
- 6k3y
- Class
- DNA
- Method
- NMR
- Summary
- G-quadruplex complex with cyclic dinucleotide 3'-3' cgamp
- Reference
- Winnerdy FR, Das P, Heddi B, Phan AT (2019): "Solution Structures of a G-Quadruplex Bound to Linear- and Cyclic-Dinucleotides." J.Am.Chem.Soc., 141, 18038-18047. doi: 10.1021/jacs.9b05642.
- Abstract
- Cyclic dinucleotides have emerged as important secondary messengers and cell signaling molecules that regulate several cell responses. A guanine-deficit G-quadruplex structure formation by a sequence containing (4<i>n</i> - 1) guanines, <i>n</i> denoting the number of G-tetrad layers, was previously reported. Here, a (4<i>n</i> - 1) G-quadruplex structure is shown to be capable of binding guanine-containing dinucleotides in micromolar affinity. The guanine base of the dinucleotides interacts with a vacant G-triad, forming four additional Hoogsteen hydrogen bonds to complete a G-tetrad. Solution structures of two complexes, both comprised of a (4<i>n</i> - 1) G-quadruplex structure, one bound to a linear dinucleotide (d(AG)) and the other to a cyclic dinucleotide (cGAMP), are solved using NMR spectroscopy. The latter suggests sufficiently strong interaction between the guanine base of the dinucleotide and the vacant G-triad, which acts as an anchor point of binding. The binding interfaces from the two solution structures provide useful information for specific ligand design. The results also infer that other guanine-containing metabolites of a similar size have the capability of binding G-quadruplexes, potentially affecting the expression of the metabolites and functionality of the bound G-quadruplexes.
- G4 notes
- 3 G-tetrads, 1 G4 helix, 1 G4 stem, UUUU, parallel, 4+0, 2(-P-P-P)

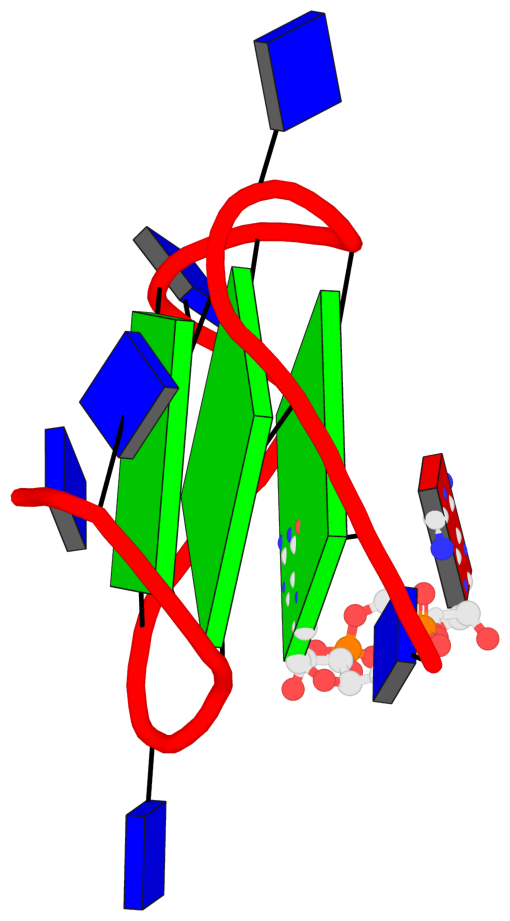

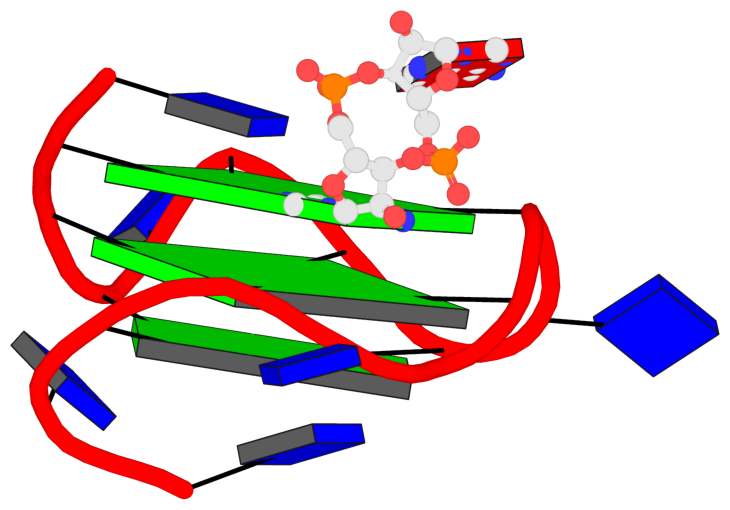

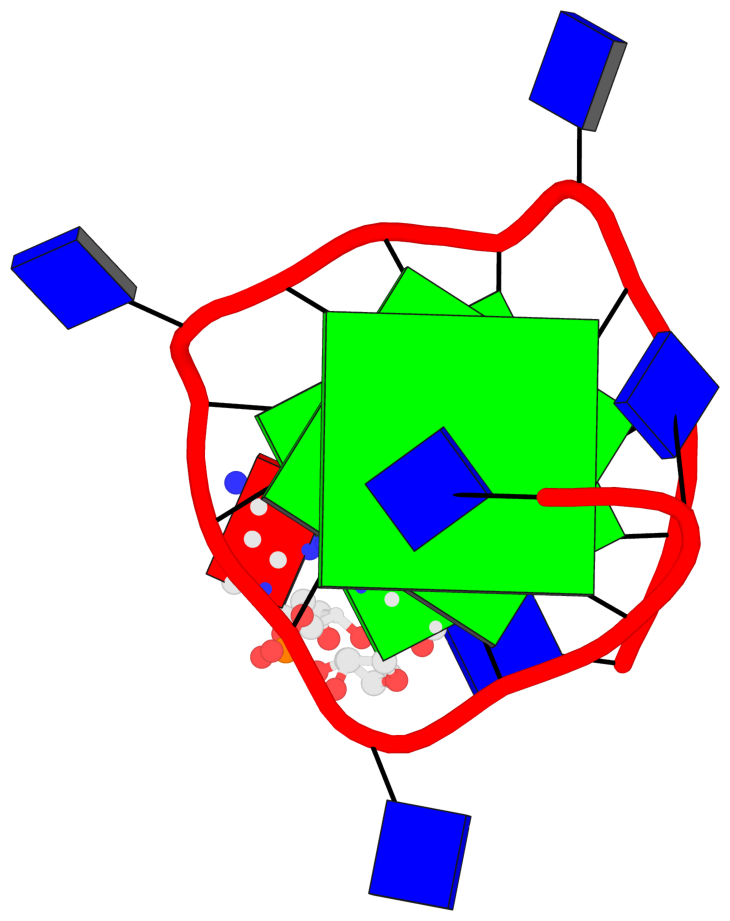

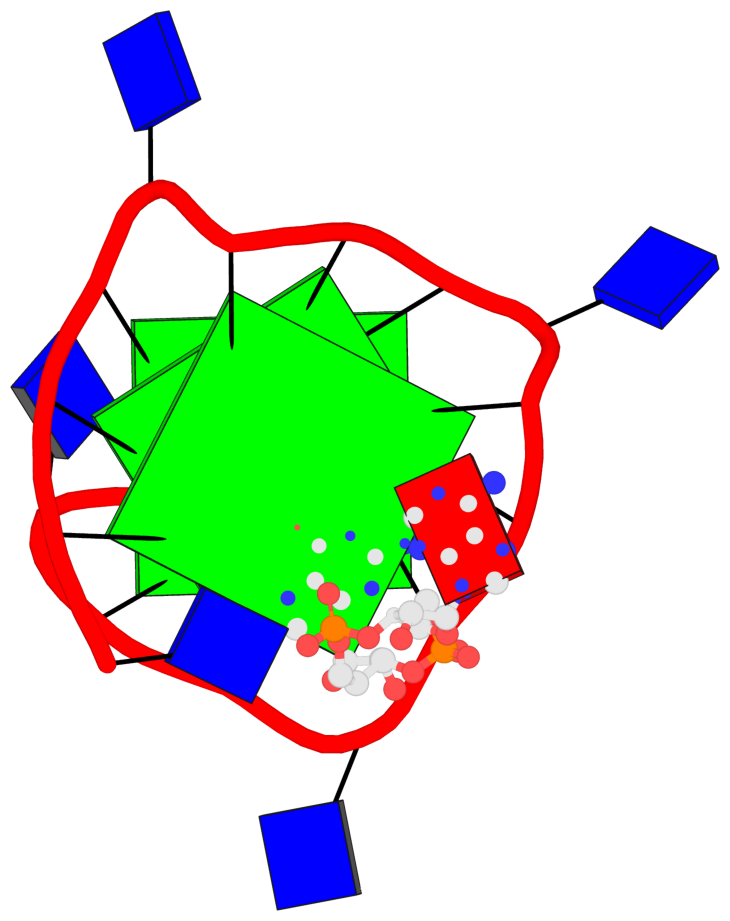

Cartoon-block schematics in six views (download the tarball)
List of 3 G-tetrads
1 glyco-bond=---- sugar=---- groove=---- planarity=0.085 type=planar O+ nts=4 GGGG A.DG3,A.DG6,A.DG10,A.DG14 2 glyco-bond=---- sugar=---- groove=---- planarity=0.081 type=planar O+ nts=4 GGGG A.DG4,A.DG7,A.DG11,A.DG15 3 glyco-bond=---- sugar=---. groove=---- planarity=0.055 type=planar O+ nts=4 GGGg A.DG8,A.DG12,A.DG16,A.4BG100

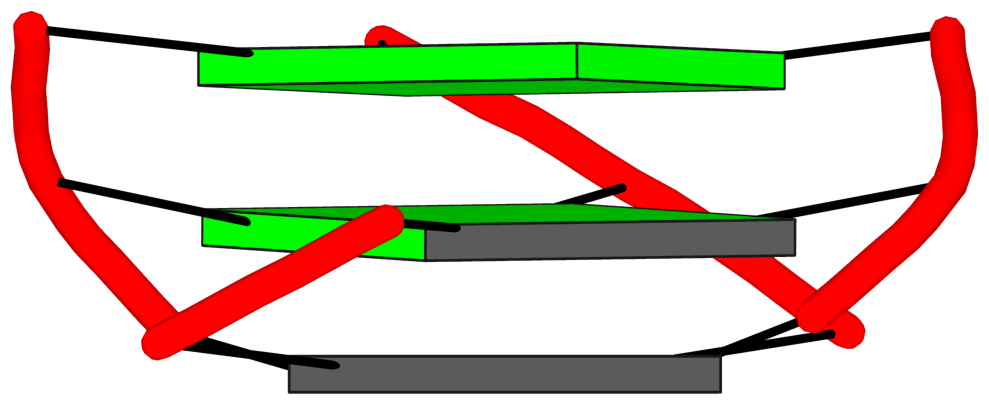

List of 1 G4-helix
In DSSR, a G4-helix is defined by stacking interactions of G-tetrads, regardless of backbone connectivity, and may contain more than one G4-stem.
Helix#1, 3 G-tetrads, INTRA-molecular, with 1 stem
|
1 glyco-bond=---- sugar=---- groove=---- WC-->Major O+ nts=4 GGGG A.DG3,A.DG6,A.DG10,A.DG14 2 glyco-bond=---- sugar=---- groove=---- WC-->Major O+ nts=4 GGGG A.DG4,A.DG7,A.DG11,A.DG15 3 glyco-bond=---- sugar=.--- groove=---- WC-->Major O+ nts=4 gGGG A.4BG100,A.DG8,A.DG12,A.DG16 step#1 pm(>>,forward) area=10.97 rise=3.15 twist=31.1 step#2 pm(>>,forward) area=10.88 rise=3.64 twist=30.2 strand#1 DNA glyco-bond=--- sugar=--. nts=3 GGg A.DG3,A.DG4,A.4BG100 strand#2 DNA glyco-bond=--- sugar=--- nts=3 GGG A.DG6,A.DG7,A.DG8 strand#3 DNA glyco-bond=--- sugar=--- nts=3 GGG A.DG10,A.DG11,A.DG12 strand#4 DNA glyco-bond=--- sugar=--- nts=3 GGG A.DG14,A.DG15,A.DG16 |

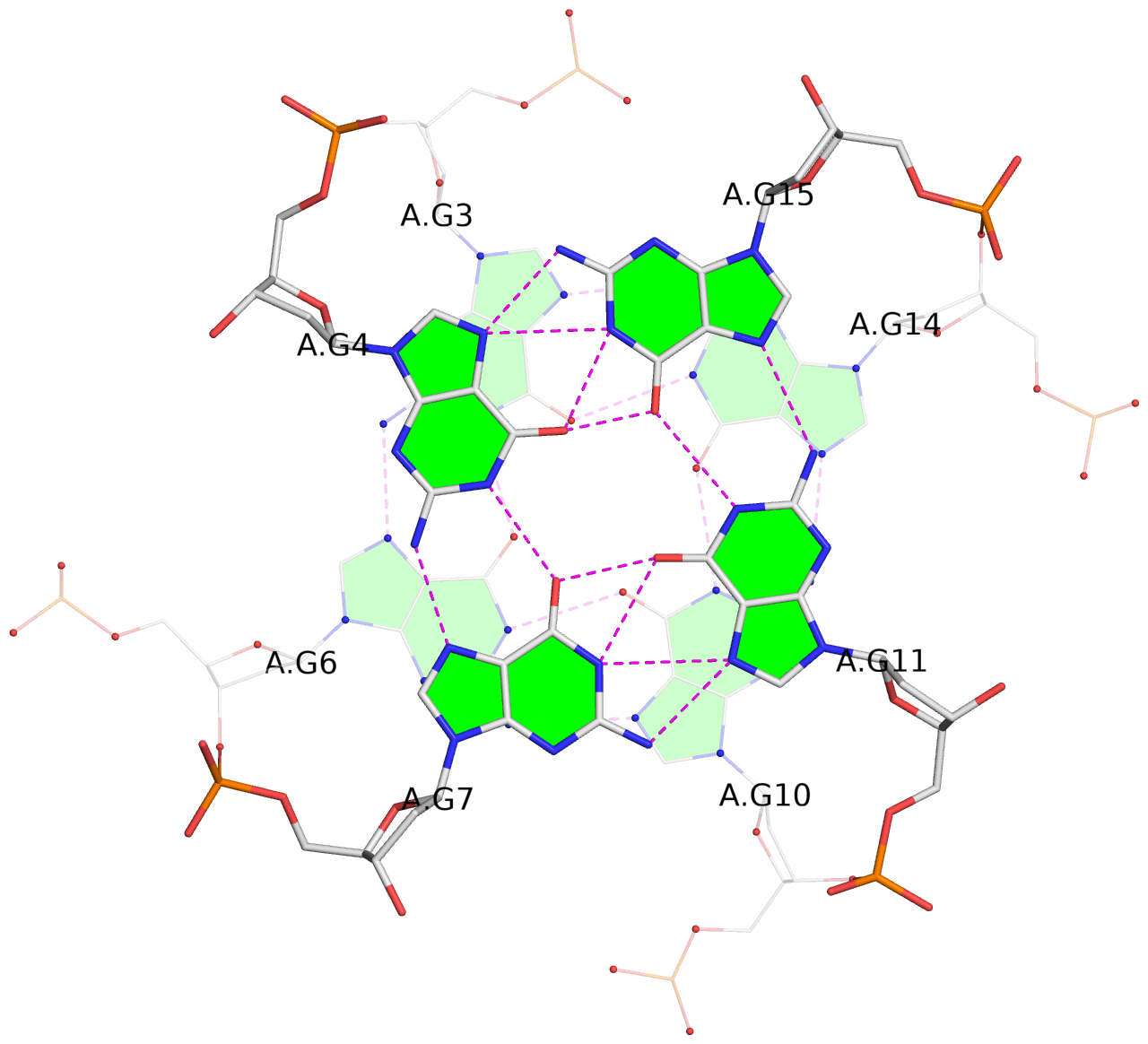

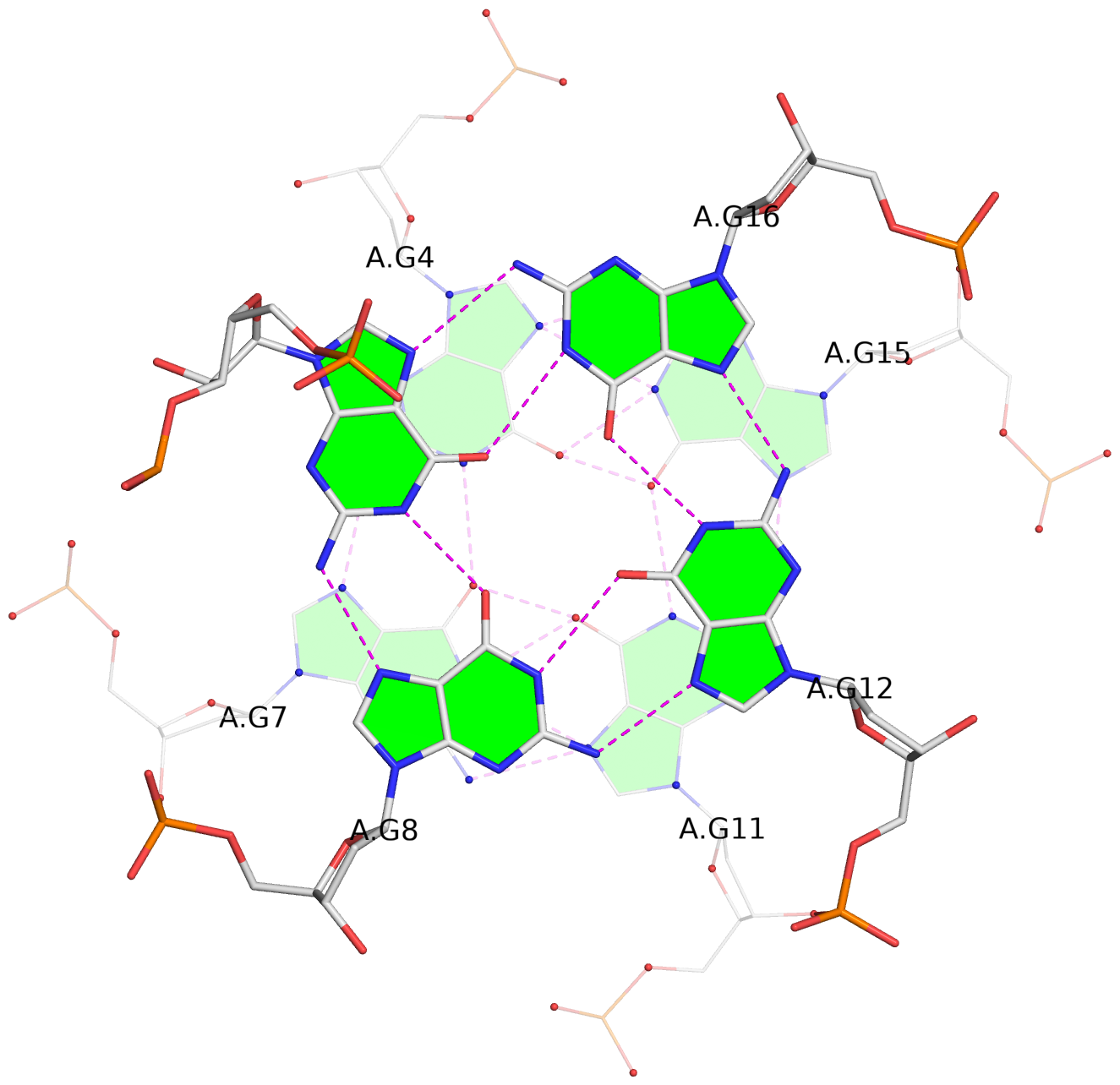

| 2 stacking diagrams | |
|
1 glyco-bond=---- sugar=---- groove=---- WC-->Major O+ nts=4 GGGG A.DG3,A.DG6,A.DG10,A.DG14 |
|
2 glyco-bond=---- sugar=---- groove=---- WC-->Major O+ nts=4 GGGG A.DG4,A.DG7,A.DG11,A.DG15 |

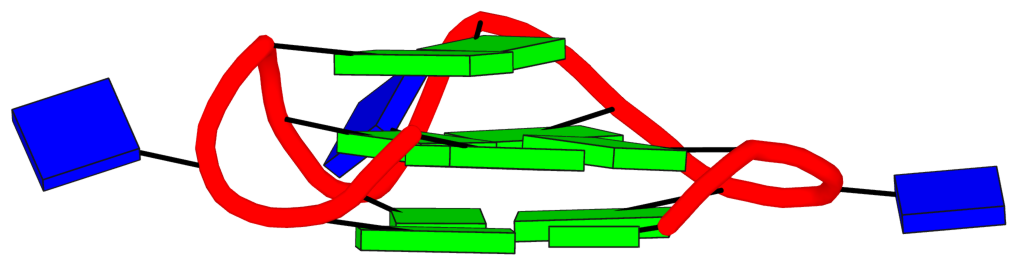

List of 1 G4-stem
In DSSR, a G4-stem is defined as a G4-helix with backbone connectivity. Bulges are also allowed along each of the four strands.
Stem#1, 2 G-tetrads, 3 loops, INTRA-molecular, UUUU, parallel, 4+0, 2(-P-P-P)
|
1 glyco-bond=---- sugar=---- groove=---- WC-->Major O+ nts=4 GGGG A.DG3,A.DG6,A.DG10,A.DG14 2 glyco-bond=---- sugar=---- groove=---- WC-->Major O+ nts=4 GGGG A.DG4,A.DG7,A.DG11,A.DG15 step#1 pm(>>,forward) area=10.97 rise=3.15 twist=31.1 strand#1 U DNA glyco-bond=-- sugar=-- nts=2 GG A.DG3,A.DG4 strand#2 U DNA glyco-bond=-- sugar=-- nts=2 GG A.DG6,A.DG7 strand#3 U DNA glyco-bond=-- sugar=-- nts=2 GG A.DG10,A.DG11 strand#4 U DNA glyco-bond=-- sugar=-- nts=2 GG A.DG14,A.DG15 loop#1 type=propeller strands=[#1,#2] nts=1 T A.DT5 loop#2 type=propeller strands=[#2,#3] nts=2 GT A.DG8,A.DT9 loop#3 type=propeller strands=[#3,#4] nts=2 GT A.DG12,A.DT13 |
