Summary information and primary citation

PDB-id
7ys7
Class
DNA
Method
NMR
Summary
Ret oncogene primer g4-DNA in 100mmna+
Reference
Yin S, Cao C: "RET oncogene primer G-quadruplex in Na+."
Abstract

G4 notes
3 G-tetrads, 1 G4 helix, 1 G4 stem, UDDD, hybrid4, 1+3, 2(D+PX)

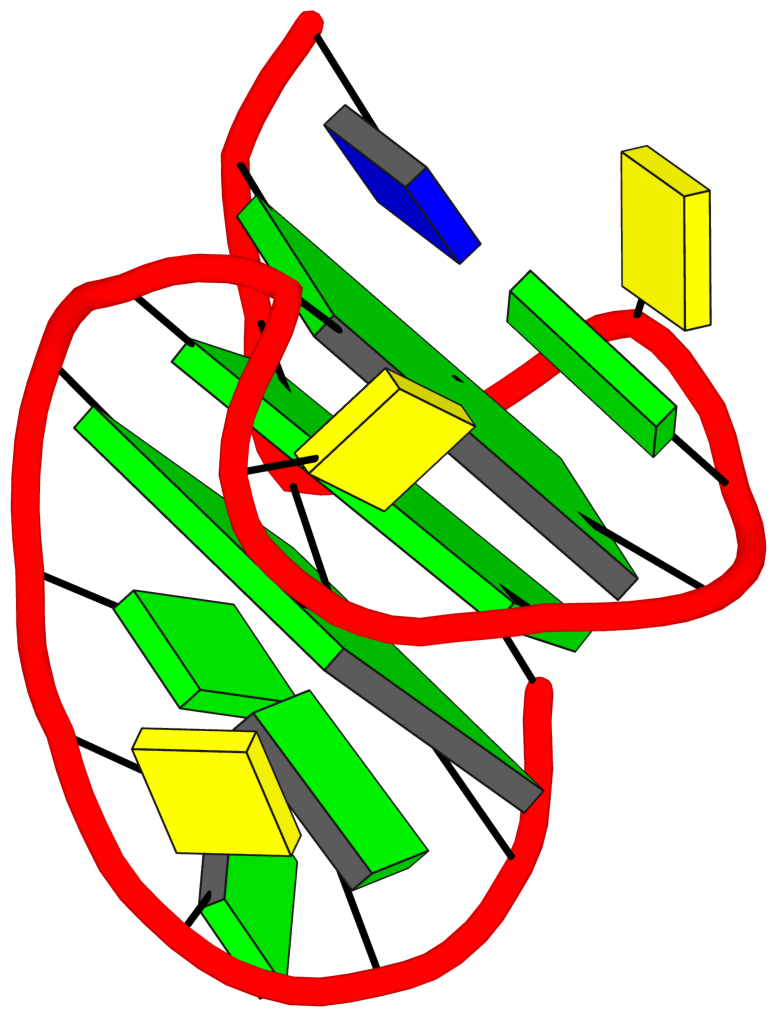

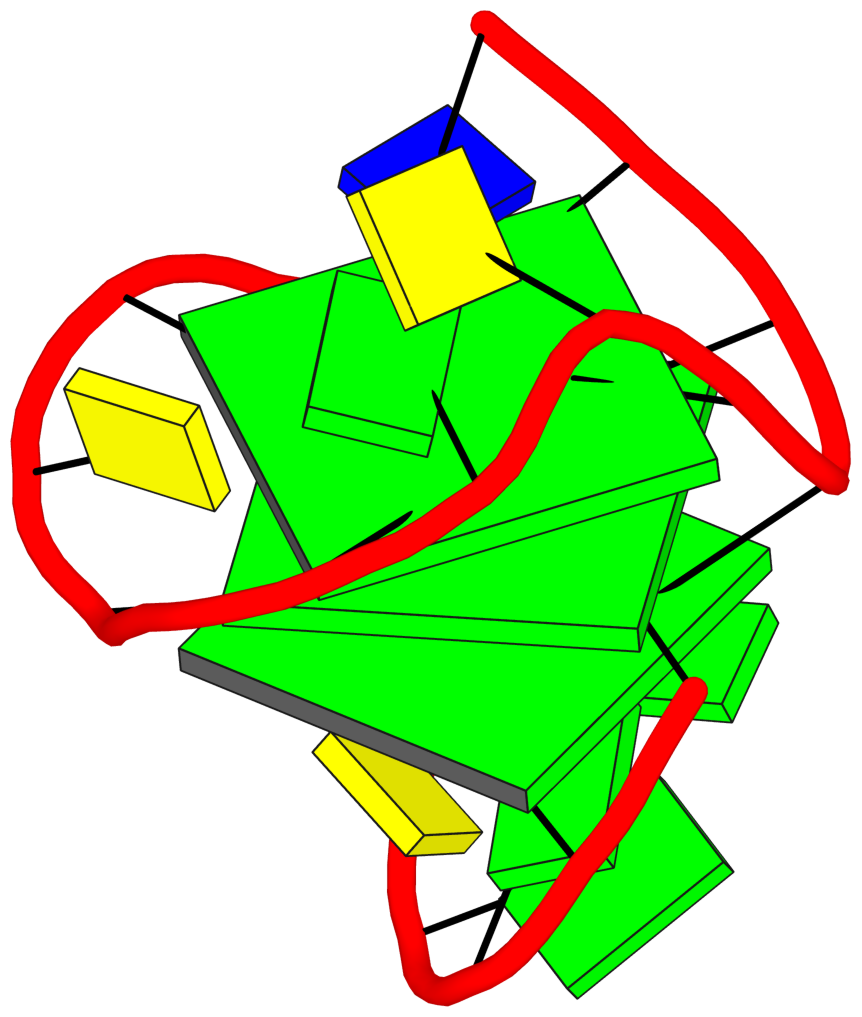

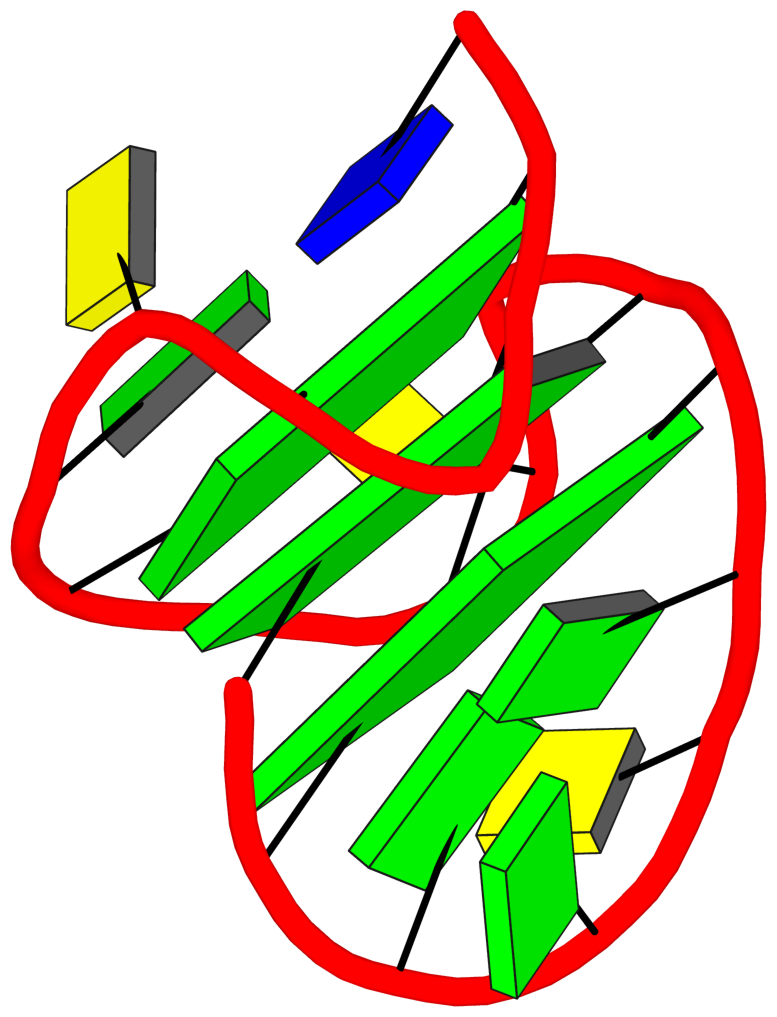

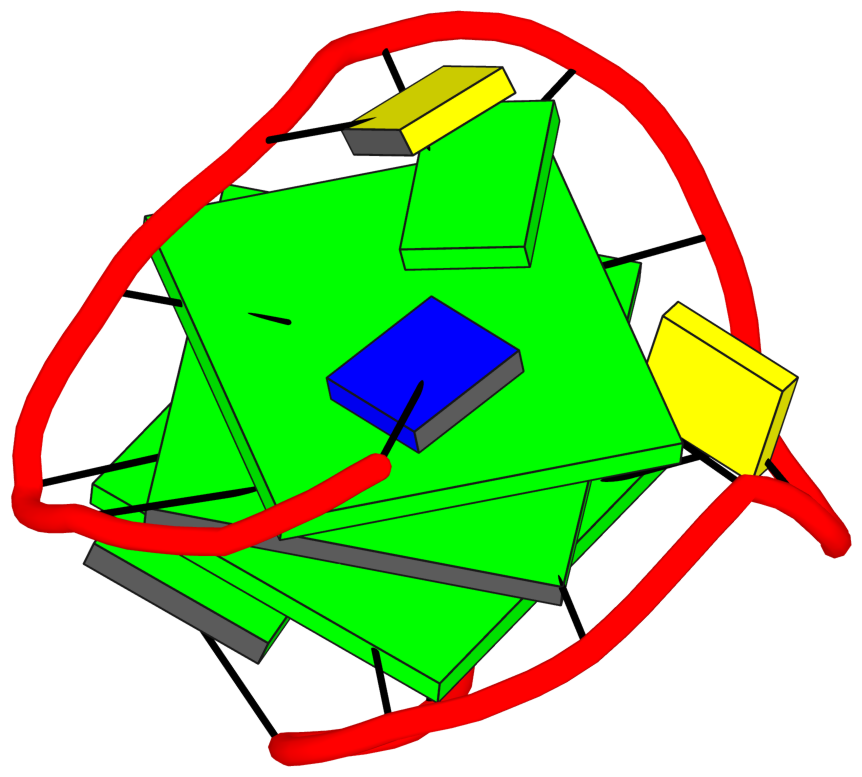

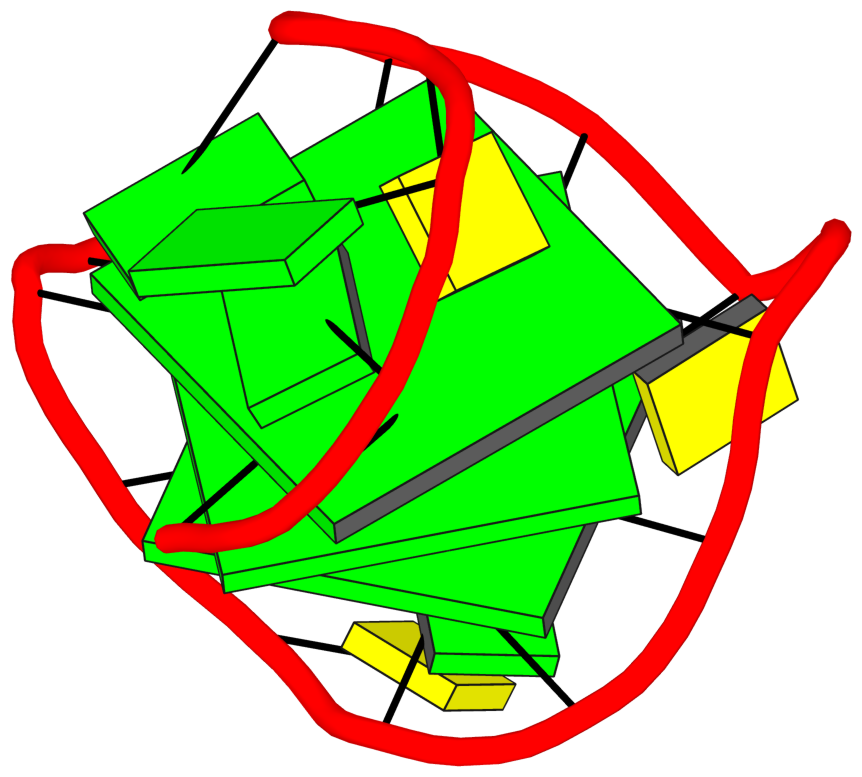

Cartoon-block schematics in six views (download the tarball)

PyMOL session file

Download PDB file

View in 3Dmol.js

List of 3 G-tetrads

 1 glyco-bond=s--- sugar=3.-. groove=w--n planarity=0.116 type=planar Z- nts=4 GGGG A.DG1,A.DG12,A.DG8,A.DG18
 2 glyco-bond=-sss sugar=3--3 groove=w--n planarity=0.112 type=planar Z+ nts=4 GGGG A.DG2,A.DG11,A.DG7,A.DG17
 3 glyco-bond=--s- sugar=--33 groove=-wn- planarity=0.245 type=other  O+ nts=4 GGGG A.DG9,A.DG13,A.DG16,A.DG19

List of 1 G4-helix

In DSSR, a G4-helix is defined by stacking interactions of G-tetrads, regardless of backbone connectivity, and may contain more than one G4-stem.

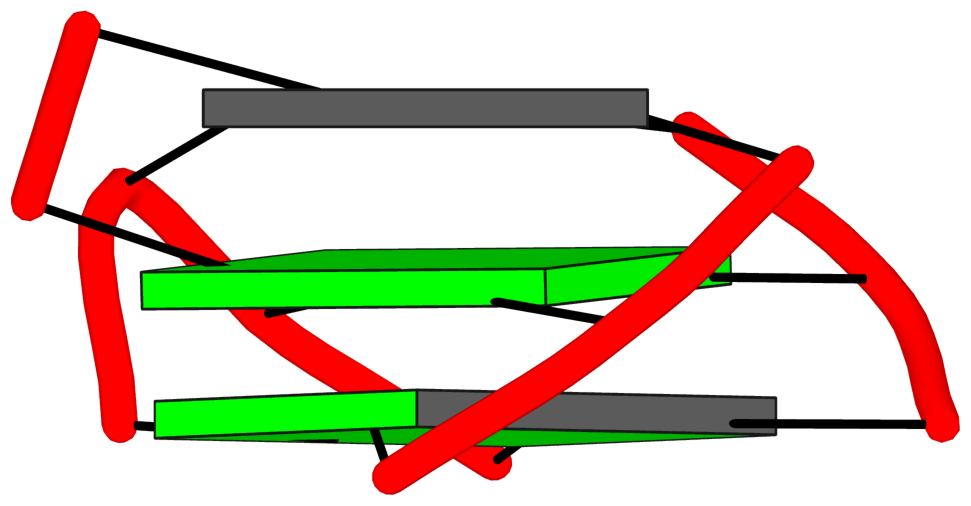

Helix#1, 3 G-tetrads, INTRA-molecular, with 1 stem
 1  glyco-bond=-sss sugar=3--3 groove=w--n WC-->Major Z+ nts=4 GGGG A.DG2,A.DG11,A.DG7,A.DG17
 2  glyco-bond=s--- sugar=3.-. groove=w--n Major-->WC Z- nts=4 GGGG A.DG1,A.DG12,A.DG8,A.DG18
 3  glyco-bond=s--- sugar=3--3 groove=w--n Major-->WC O+ nts=4 GGGG A.DG16,A.DG13,A.DG9,A.DG19
  step#1  mm(<>,outward)  area=9.77  rise=3.68 twist=24.6
  step#2  pm(>>,forward)  area=12.31 rise=3.03 twist=29.2
  strand#1 DNA glyco-bond=-ss sugar=333 nts=3 GGG A.DG2,A.DG1,A.DG16
  strand#2 DNA glyco-bond=s-- sugar=-.- nts=3 GGG A.DG11,A.DG12,A.DG13
  strand#3 DNA glyco-bond=s-- sugar=--- nts=3 GGG A.DG7,A.DG8,A.DG9
  strand#4 DNA glyco-bond=s-- sugar=3.3 nts=3 GGG A.DG17,A.DG18,A.DG19

Download PDB file
Interactive view in 3Dmol.js

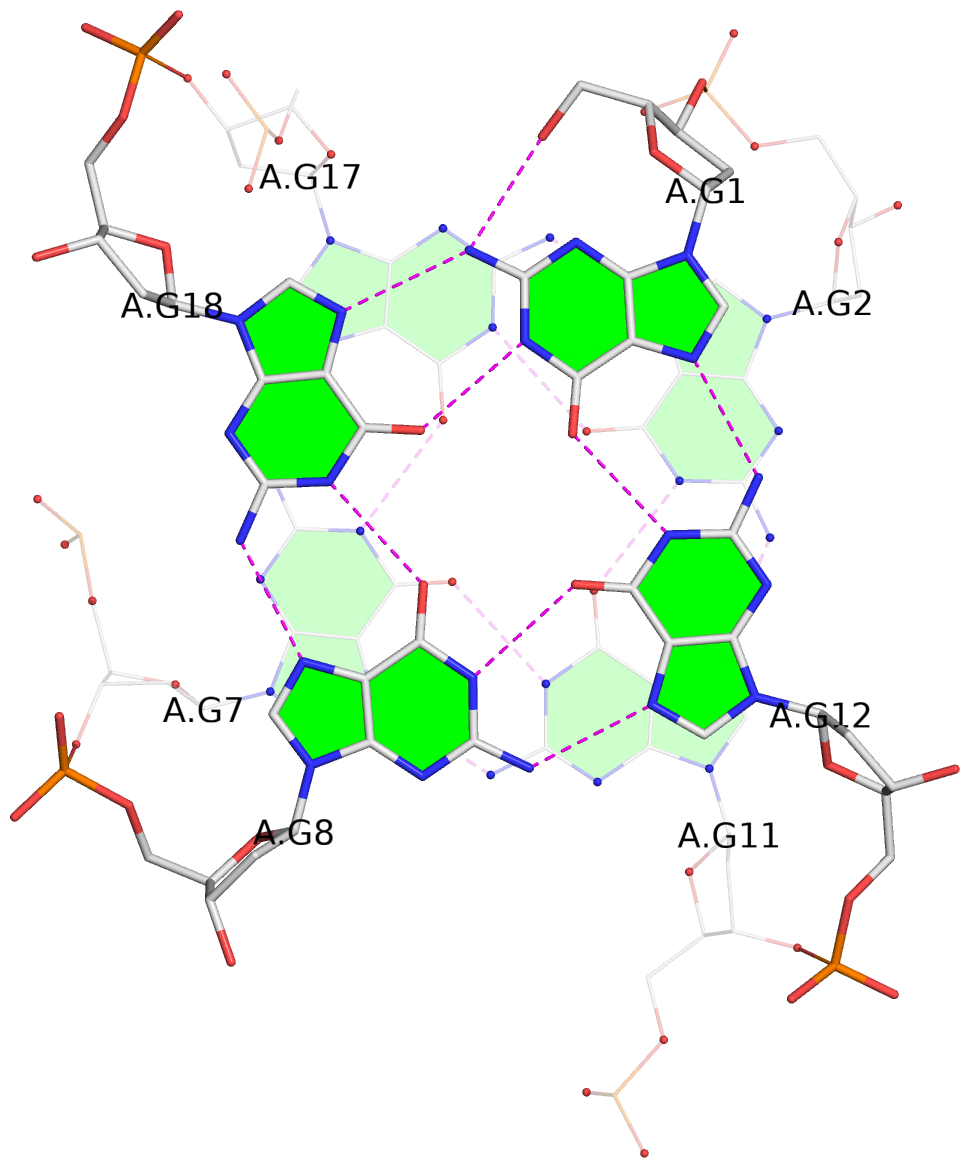

2 stacking diagrams
 1  glyco-bond=-sss sugar=3--3 groove=w--n WC-->Major Z+ nts=4 GGGG A.DG2,A.DG11,A.DG7,A.DG17
 2  glyco-bond=s--- sugar=3.-. groove=w--n Major-->WC Z- nts=4 GGGG A.DG1,A.DG12,A.DG8,A.DG18
  step#1  mm(<>,outward)  area=9.77  rise=3.68 twist=24.6

Download PDB file
Interactive view in 3Dmol.js


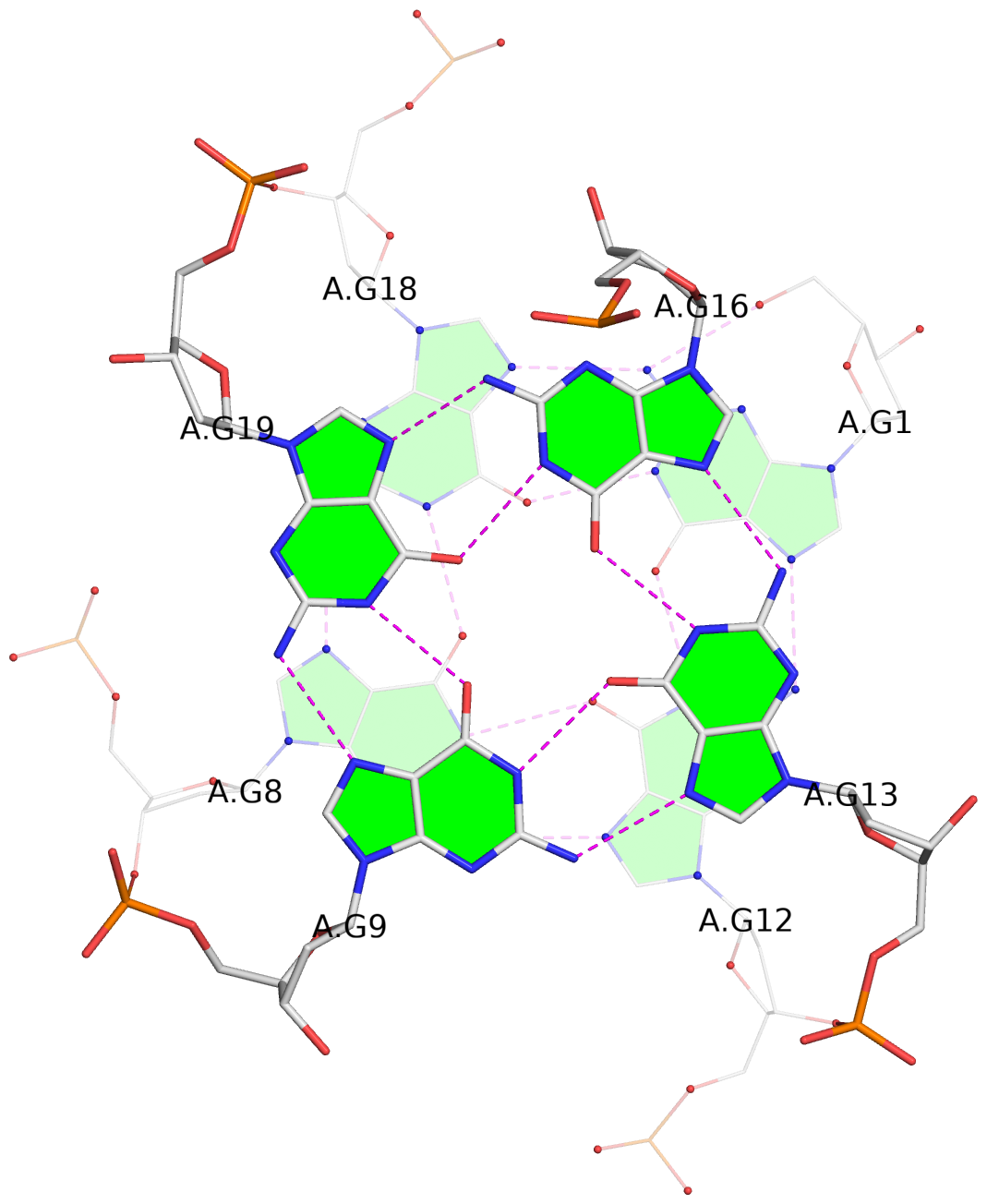

 2  glyco-bond=s--- sugar=3.-. groove=w--n Major-->WC Z- nts=4 GGGG A.DG1,A.DG12,A.DG8,A.DG18
 3  glyco-bond=s--- sugar=3--3 groove=w--n Major-->WC O+ nts=4 GGGG A.DG16,A.DG13,A.DG9,A.DG19
  step#2  pm(>>,forward)  area=12.31 rise=3.03 twist=29.2

Download PDB file
Interactive view in 3Dmol.js

List of 1 G4-stem

In DSSR, a G4-stem is defined as a G4-helix with backbone connectivity. Bulges are also allowed along each of the four strands.

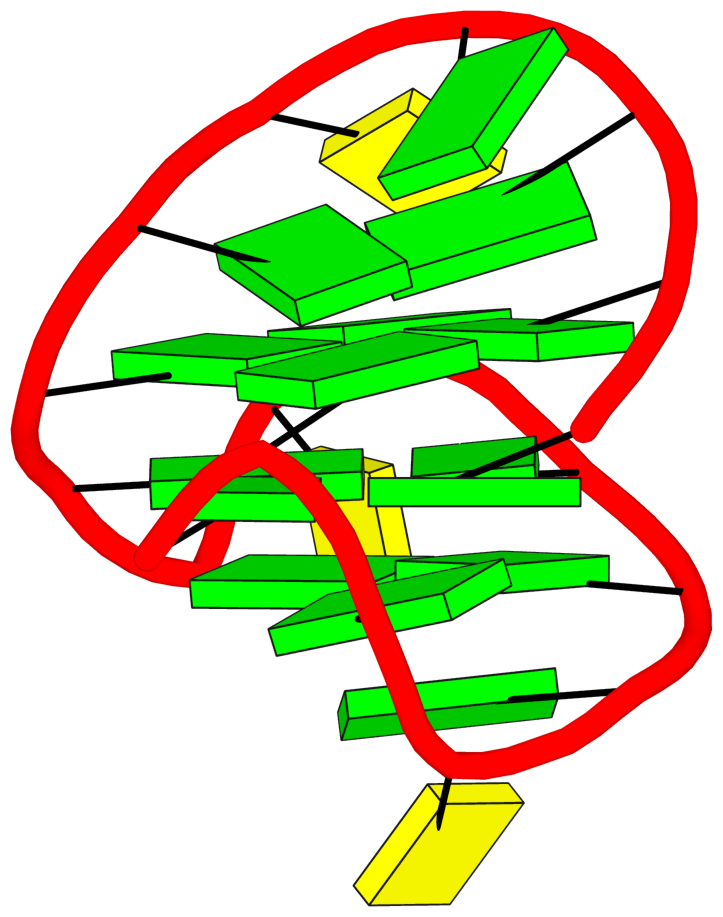

Stem#1, 2 G-tetrads, 3 loops, INTRA-molecular, UDDD, hybrid4, 1+3, 2(D+PX)
 1  glyco-bond=s--- sugar=3.-. groove=w--n Major-->WC Z- nts=4 GGGG A.DG1,A.DG12,A.DG8,A.DG18
 2  glyco-bond=-sss sugar=3--3 groove=w--n WC-->Major Z+ nts=4 GGGG A.DG2,A.DG11,A.DG7,A.DG17
  step#1  mm(<>,outward)  area=9.77  rise=3.68 twist=24.6
  strand#1  U DNA glyco-bond=s- sugar=33 nts=2 GG A.DG1,A.DG2
  strand#2  D DNA glyco-bond=-s sugar=.- nts=2 GG A.DG12,A.DG11
  strand#3  D DNA glyco-bond=-s sugar=-- nts=2 GG A.DG8,A.DG7
  strand#4  D DNA glyco-bond=-s sugar=.3 nts=2 GG A.DG18,A.DG17
  loop#1 type=diagonal  strands=[#1,#3] nts=4 GGCG A.DG3,A.DG4,A.DC5,A.DG6
  loop#2 type=propeller strands=[#3,#2] nts=2 GC A.DG9,A.DC10
  loop#3 type=diag-prop strands=[#2,#4] nts=4 GGCG A.DG13,A.DG14,A.DC15,A.DG16

Download PDB file
Interactive view in 3Dmol.js

List of 2 non-stem G4-loops (including the two closing Gs)

 1 type=lateral   helix=#1 nts=4 GGCG A.DG13,A.DG14,A.DC15,A.DG16
 2 type=V-shaped  helix=#1 nts=4 GGGG A.DG16,A.DG17,A.DG18,A.DG19
