Summary information and primary citation

PDB-id
9wih
Class
DNA
Method
NMR
Summary
Parallel DNA g-quadruplex formed by aa(gggt)3gggaa in potassium condition
Reference
Negi D, Sannapureddi RKR, Sathyamoorthy B: "Influence of single Inosine substitution in a parallel DNA G-quadruplex with single nucleotide loops."
Abstract

G4 notes
3 G-tetrads, 1 G4 helix, 1 G4 stem, UUUU, parallel, 4+0, 3(-P-P-P)

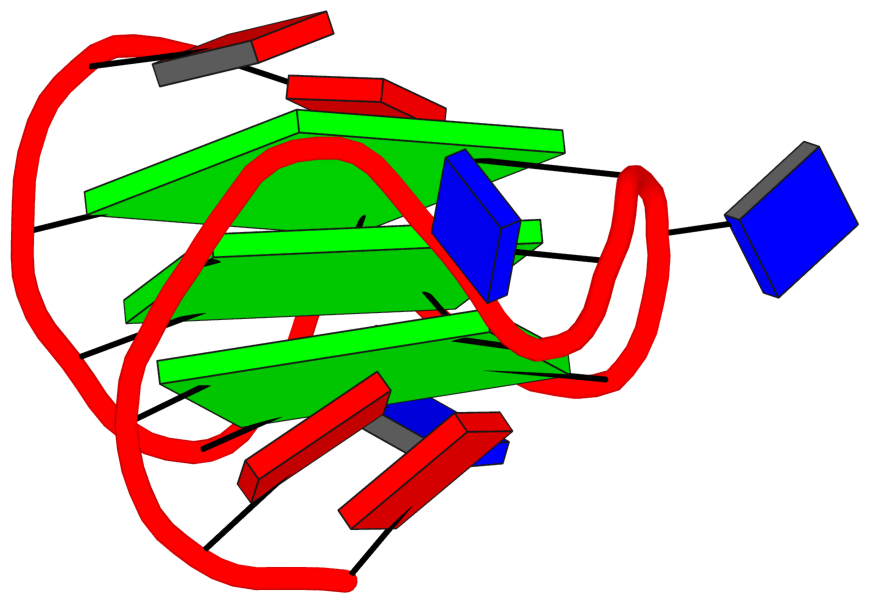

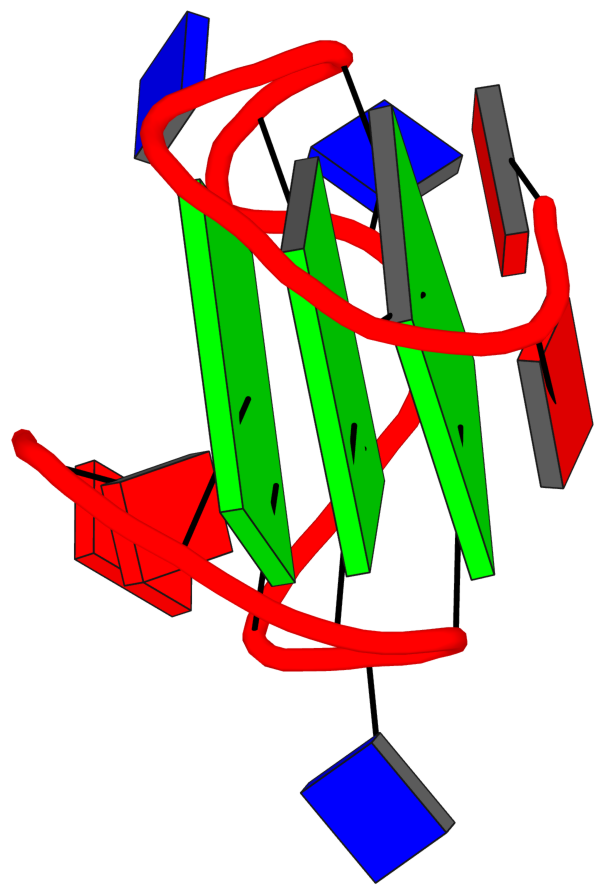

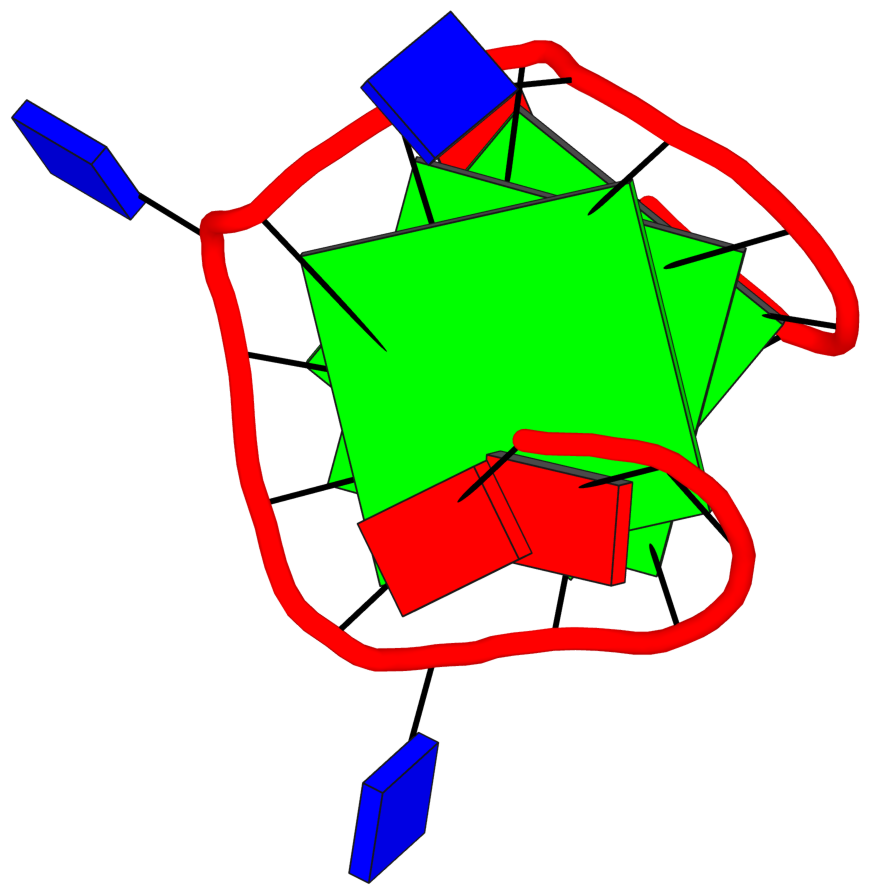

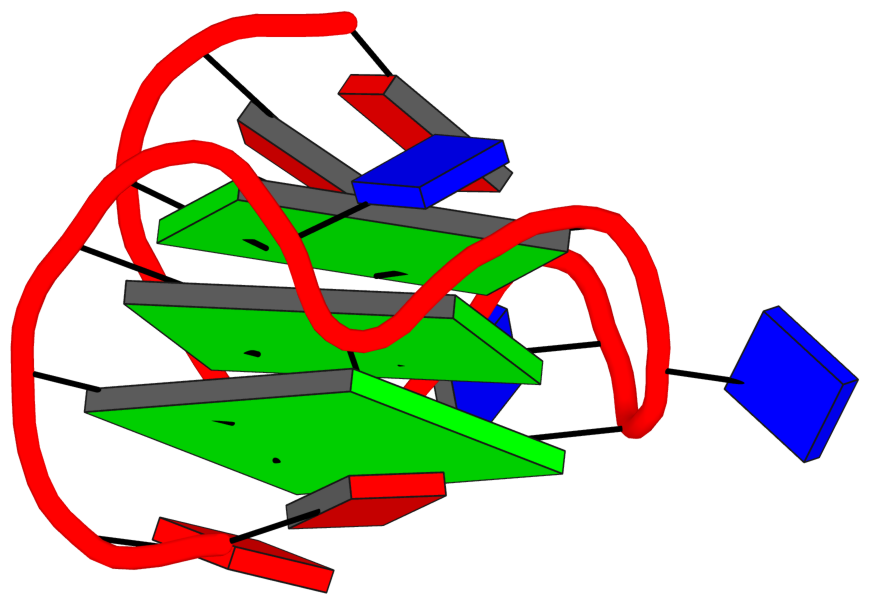

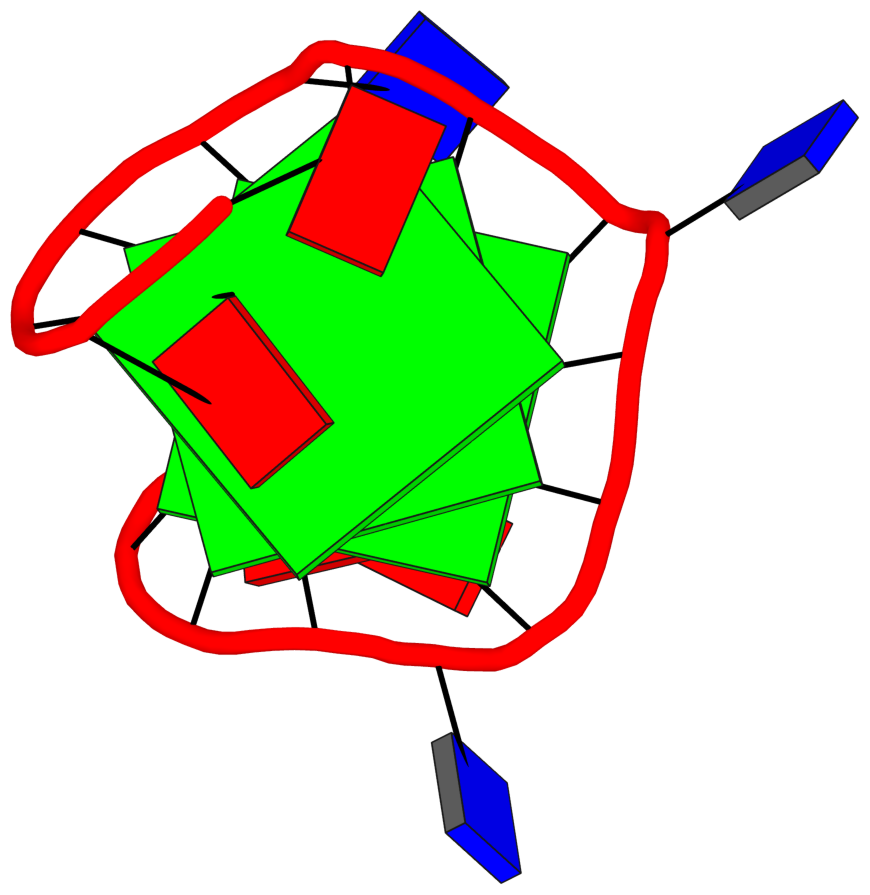

Cartoon-block schematics in six views (download the tarball)

PyMOL session file

Download PDB file

View in 3Dmol.js

List of 3 G-tetrads

 1 glyco-bond=---- sugar=---- groove=---- planarity=0.337 type=other  O+ nts=4 GGGG A.DG3,A.DG7,A.DG11,A.DG15
 2 glyco-bond=---- sugar=.-.- groove=---- planarity=0.278 type=bowl   O+ nts=4 GGGG A.DG4,A.DG8,A.DG12,A.DG16
 3 glyco-bond=---- sugar=---- groove=---- planarity=0.419 type=bowl   O+ nts=4 GGGG A.DG5,A.DG9,A.DG13,A.DG17

List of 1 G4-helix

In DSSR, a G4-helix is defined by stacking interactions of G-tetrads, regardless of backbone connectivity, and may contain more than one G4-stem.

Helix#1, 3 G-tetrads, INTRA-molecular, with 1 stem
 1  glyco-bond=---- sugar=---- groove=---- WC-->Major O+ nts=4 GGGG A.DG3,A.DG7,A.DG11,A.DG15
 2  glyco-bond=---- sugar=.-.- groove=---- WC-->Major O+ nts=4 GGGG A.DG4,A.DG8,A.DG12,A.DG16
 3  glyco-bond=---- sugar=---- groove=---- WC-->Major O+ nts=4 GGGG A.DG5,A.DG9,A.DG13,A.DG17
  step#1  pm(>>,forward)  area=13.64 rise=3.47 twist=24.0
  step#2  pm(>>,forward)  area=11.13 rise=3.41 twist=28.7
  strand#1 DNA glyco-bond=--- sugar=-.- nts=3 GGG A.DG3,A.DG4,A.DG5
  strand#2 DNA glyco-bond=--- sugar=--- nts=3 GGG A.DG7,A.DG8,A.DG9
  strand#3 DNA glyco-bond=--- sugar=-.- nts=3 GGG A.DG11,A.DG12,A.DG13
  strand#4 DNA glyco-bond=--- sugar=--- nts=3 GGG A.DG15,A.DG16,A.DG17

Download PDB file
Interactive view in 3Dmol.js
2 stacking diagrams

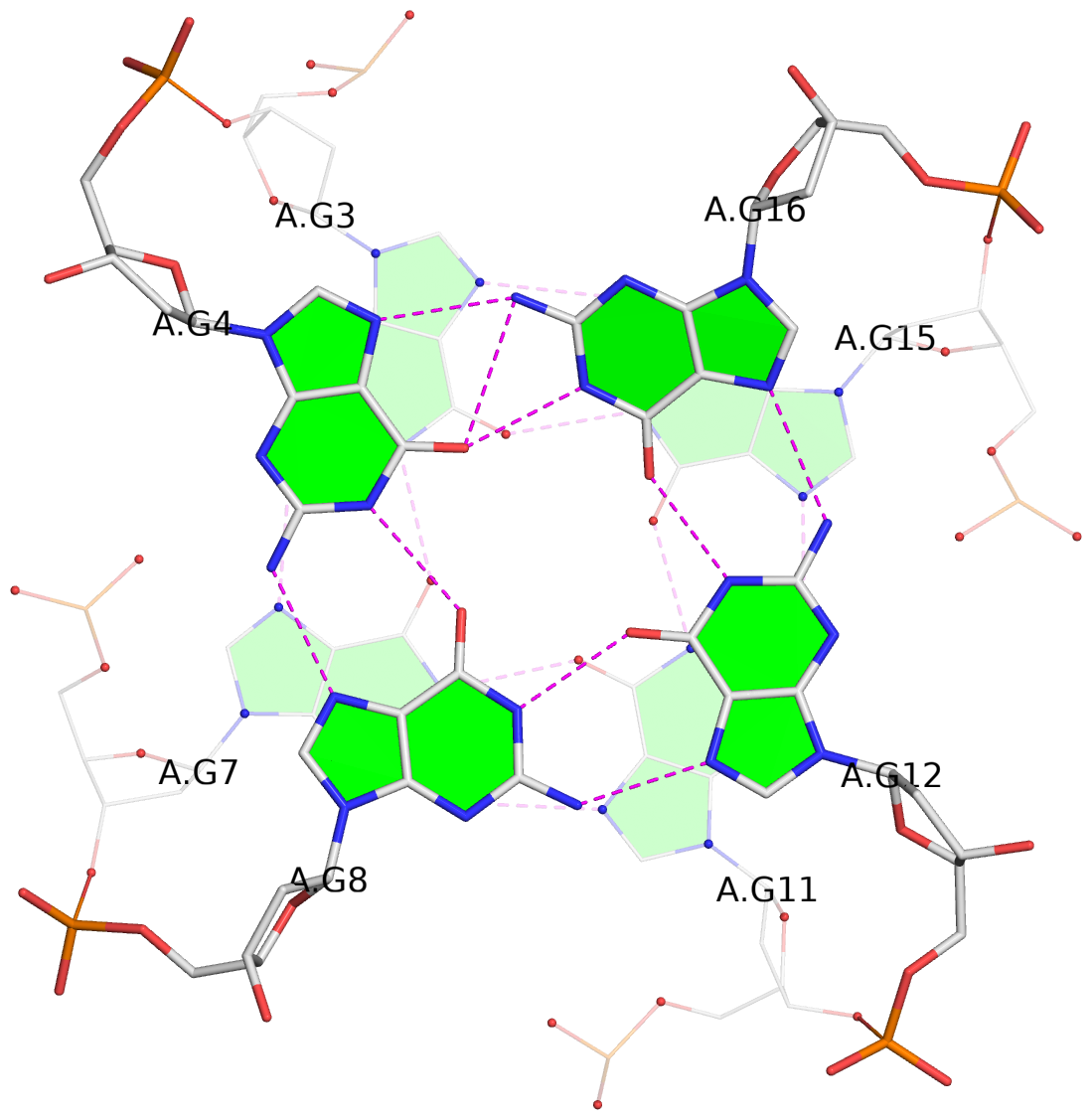

 1  glyco-bond=---- sugar=---- groove=---- WC-->Major O+ nts=4 GGGG A.DG3,A.DG7,A.DG11,A.DG15
 2  glyco-bond=---- sugar=.-.- groove=---- WC-->Major O+ nts=4 GGGG A.DG4,A.DG8,A.DG12,A.DG16
  step#1  pm(>>,forward)  area=13.64 rise=3.47 twist=24.0

Download PDB file
Interactive view in 3Dmol.js

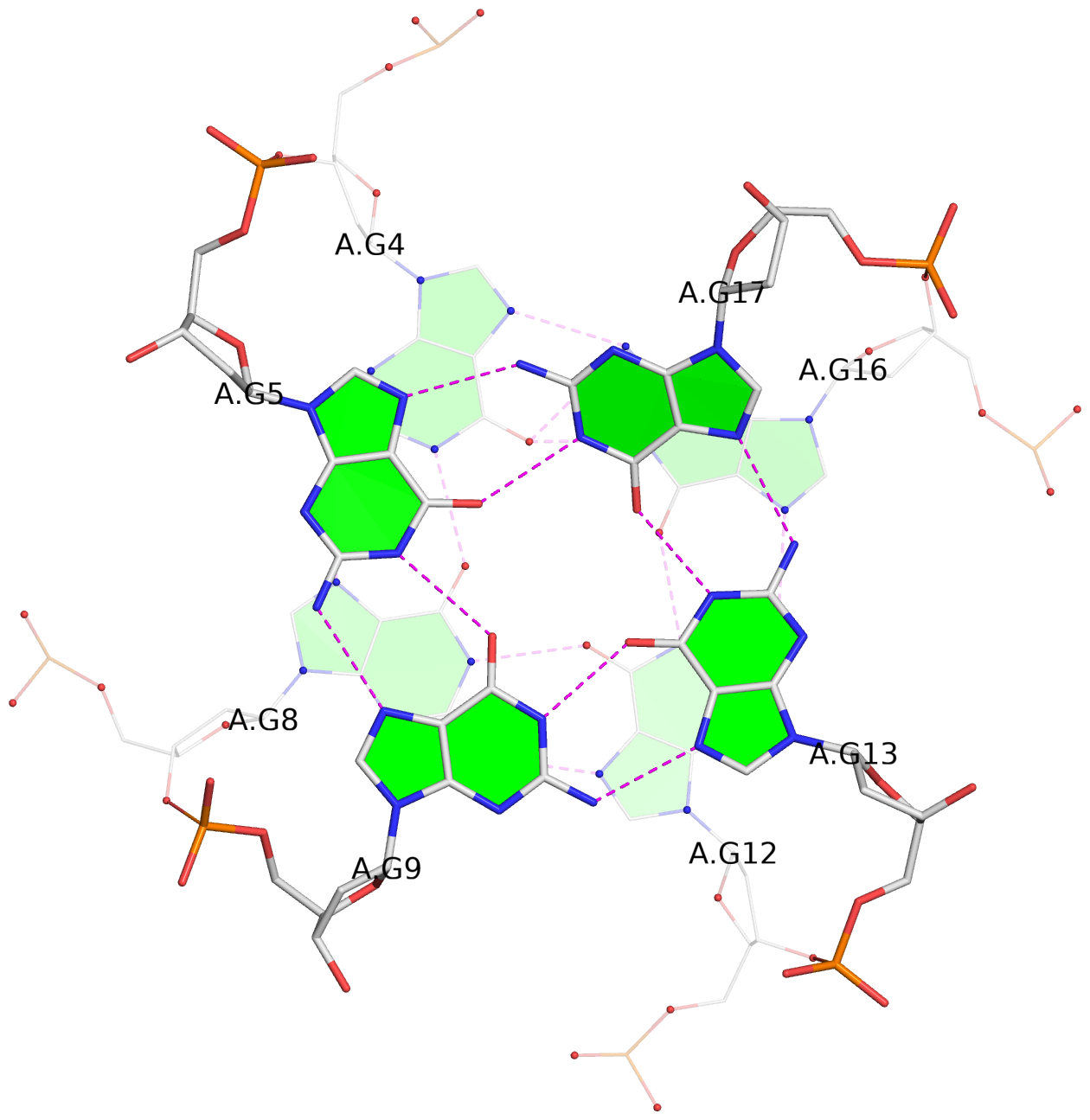

 2  glyco-bond=---- sugar=.-.- groove=---- WC-->Major O+ nts=4 GGGG A.DG4,A.DG8,A.DG12,A.DG16
 3  glyco-bond=---- sugar=---- groove=---- WC-->Major O+ nts=4 GGGG A.DG5,A.DG9,A.DG13,A.DG17
  step#2  pm(>>,forward)  area=11.13 rise=3.41 twist=28.7

Download PDB file
Interactive view in 3Dmol.js

List of 1 G4-stem

In DSSR, a G4-stem is defined as a G4-helix with backbone connectivity. Bulges are also allowed along each of the four strands.

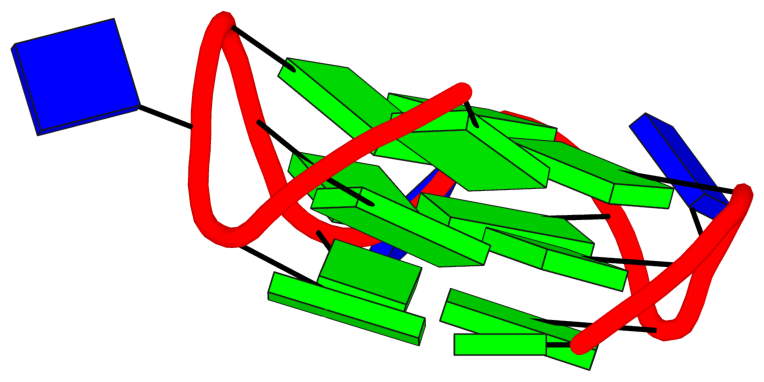

Stem#1, 3 G-tetrads, 3 loops, INTRA-molecular, UUUU, parallel, 4+0, 3(-P-P-P)
 1  glyco-bond=---- sugar=---- groove=---- WC-->Major O+ nts=4 GGGG A.DG3,A.DG7,A.DG11,A.DG15
 2  glyco-bond=---- sugar=.-.- groove=---- WC-->Major O+ nts=4 GGGG A.DG4,A.DG8,A.DG12,A.DG16
 3  glyco-bond=---- sugar=---- groove=---- WC-->Major O+ nts=4 GGGG A.DG5,A.DG9,A.DG13,A.DG17
  step#1  pm(>>,forward)  area=13.64 rise=3.47 twist=24.0
  step#2  pm(>>,forward)  area=11.13 rise=3.41 twist=28.7
  strand#1  U DNA glyco-bond=--- sugar=-.- nts=3 GGG A.DG3,A.DG4,A.DG5
  strand#2  U DNA glyco-bond=--- sugar=--- nts=3 GGG A.DG7,A.DG8,A.DG9
  strand#3  U DNA glyco-bond=--- sugar=-.- nts=3 GGG A.DG11,A.DG12,A.DG13
  strand#4  U DNA glyco-bond=--- sugar=--- nts=3 GGG A.DG15,A.DG16,A.DG17
  loop#1 type=propeller strands=[#1,#2] nts=1 T A.DT6
  loop#2 type=propeller strands=[#2,#3] nts=1 T A.DT10
  loop#3 type=propeller strands=[#3,#4] nts=1 T A.DT14

Download PDB file
Interactive view in 3Dmol.js
